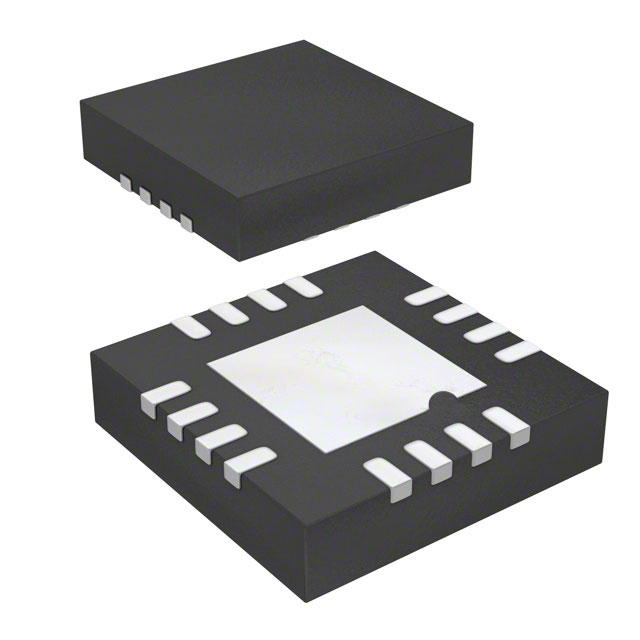

ISL8026AIRTAJZ-T7A
IC REG BUCK ADJ 6A 16TQFNManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More
Renesas Electronics Corporation's ISL8026AIRTAJZ-T7A is a highly efficient synchronous buck switching regulator. This adjustable output device provides a positive voltage output from 0.6V up to 5.5V, capable of delivering a continuous 6A of output current. Operating within an input voltage range of 2.5V to 5.5V, the ISL8026AIRTAJZ-T7A features a wide switching frequency range from 490kHz to 4.2MHz, allowing for optimized component selection. Its 16-TQFN (3x3) package with an exposed pad and surface mount configuration ensures robust thermal performance. This component is designed for demanding applications in sectors such as telecommunications, industrial automation, and consumer electronics. The device is supplied on a tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 6A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 490kHz ~ 4.2MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 16-TQFN (3x3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
