ISL8016IRAJZ-T7A
IC REG BUCK ADJ 6A 20QFNManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Renesas Electronics Corporation ISL8016IRAJZ-T7A is a high-performance, adjustable output, synchronous buck switching regulator. This device delivers up to 6A of output current with an input voltage range of 2.7V to 5.5V and an adjustable output voltage from 0.6V. The ISL8016IRAJZ-T7A operates with a switching frequency adjustable from 525kHz to 3.9MHz, enabling efficient power conversion across a broad range of applications. Its integrated synchronous rectifier enhances efficiency, minimizing the need for external components. The 20-VFQFN Exposed Pad package ensures robust thermal performance. This component is well-suited for demanding applications in sectors such as telecommunications, industrial automation, and consumer electronics where efficient voltage regulation and high current capability are critical. Supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

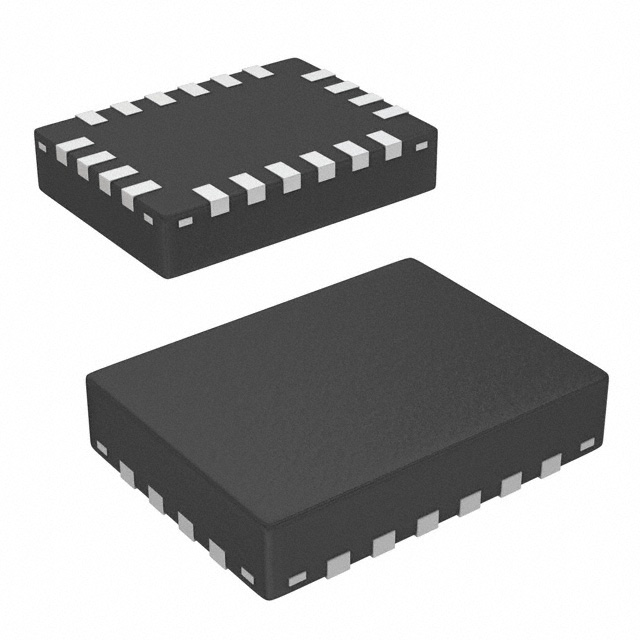

| Package / Case | 20-VFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 6A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 525kHz ~ 3.9MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 20-QFN (3x4) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 0.6V |
