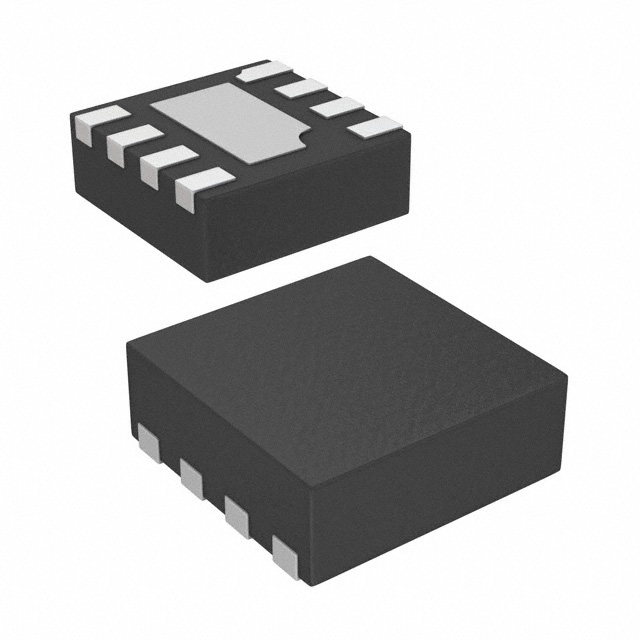

ISL80020IRZ-T7A
IC REG BUCK ADJ 2A 8TDFNManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Renesas Electronics Corporation ISL80020IRZ-T7A is a high-performance, adjustable output, 2A synchronous buck switching regulator. This device is designed for efficient power conversion in a compact 8-TDFN-EP (2x2) package. It features a fixed switching frequency of 1MHz, facilitating the use of small external components. The ISL80020IRZ-T7A offers a wide input voltage range of 2.7V to 5.5V and an adjustable output voltage from 0.6V up to the input voltage. With an integrated synchronous rectifier, it achieves high efficiency and reduces the need for an external Schottky diode. This component is well-suited for applications in consumer electronics, industrial automation, and portable devices requiring efficient voltage step-down conversion. The 8-WFDFN Exposed Pad package ensures good thermal performance.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 8-TDFN-EP (2x2) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 0.6V |
Request a Quote
