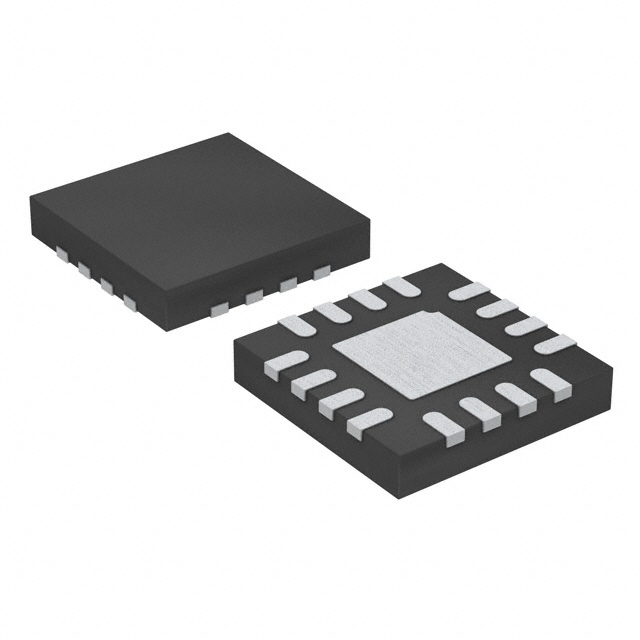

ISL78233AARZ
IC REG BUCK ADJ 3A 16WFQFNManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 3A 16-VQFN Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-VQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 420kHz ~ 4.2MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 16-WFQFN (5x5) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
