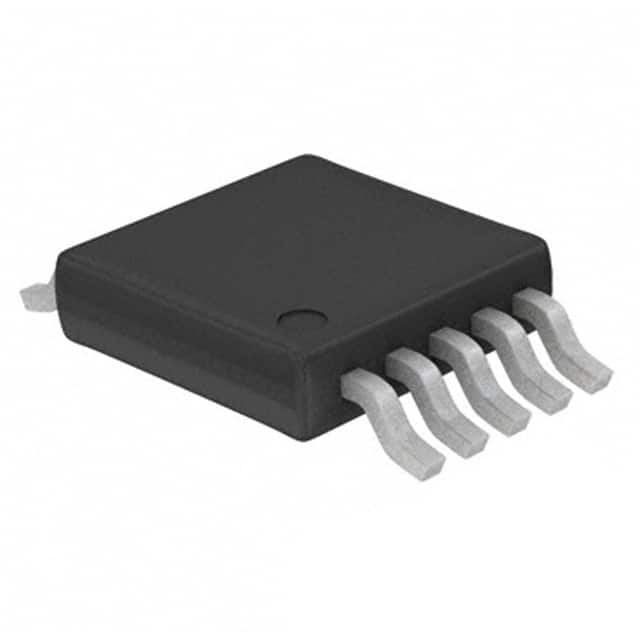

EL7536IYZ
IC REG BUCK ADJ 1A 10MSOPManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Renesas Electronics Corporation EL7536IYZ is a high-frequency, synchronous buck switching regulator designed for efficient DC-DC conversion. This adjustable positive output device offers a maximum output current of 1A and operates with a switching frequency of 1.5MHz. The EL7536IYZ features a minimum output voltage of 0.8V and can handle input voltages ranging from 2.5V to 5.5V. Its 10-MSOP package, with a 3.00mm width, is suitable for surface mount applications. This component is found in industries such as industrial automation and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1.5MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 10-MSOP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
