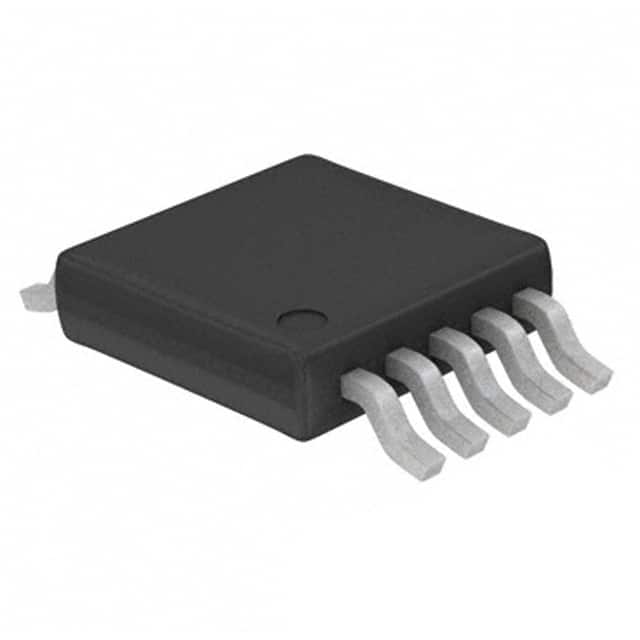

EL7531IYZ-T7
IC REG BUCK ADJ 1A 10MSOPManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More
Renesas Electronics Corporation's EL7531IYZ-T7 is a 1A adjustable positive buck switching regulator. This device operates within an input voltage range of 2.5V to 5.5V and features a fixed output voltage minimum of 0.8V with a maximum output voltage of 5.5V. The regulator has a switching frequency of 1.4MHz and utilizes a synchronous rectifier for enhanced efficiency. It is supplied in a 10-MSOP package, designed for surface mounting. The EL7531IYZ-T7 is suitable for applications in consumer electronics and industrial automation. The component is provided on a tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1.4MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 10-MSOP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
