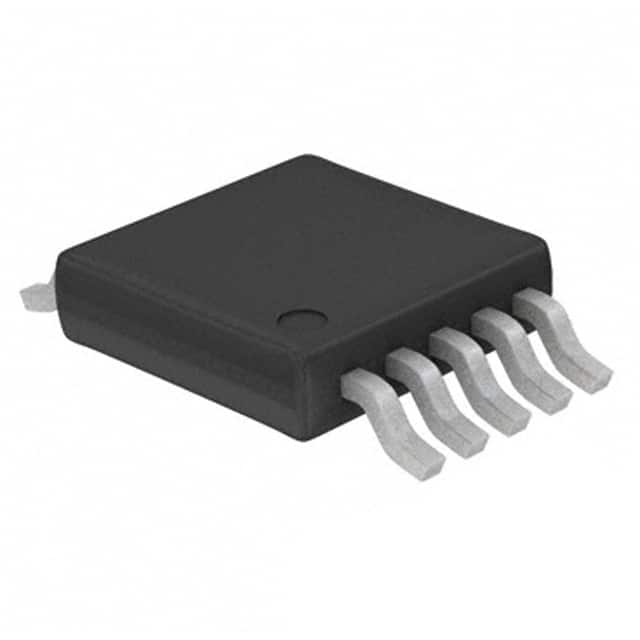

EL7531IYZ-T13
IC REG BUCK ADJ 1A 10MSOPManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Renesas Electronics Corporation EL7531IYZ-T13 is a 1A adjustable output buck switching regulator. This device operates with an input voltage range of 2.5V to 5.5V, providing an adjustable output voltage from 0.8V up to the input voltage, with a maximum output capability of 5.5V. Featuring a 1.4MHz switching frequency, it is designed for efficient power conversion in a compact footprint. The EL7531IYZ-T13 includes an integrated synchronous rectifier for improved efficiency. This component is packaged in a 10-MSOP (0.118", 3.00mm Width) and supplied on tape and reel. Applications for this device include portable electronics, battery-powered devices, and power management solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1.4MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 10-MSOP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
