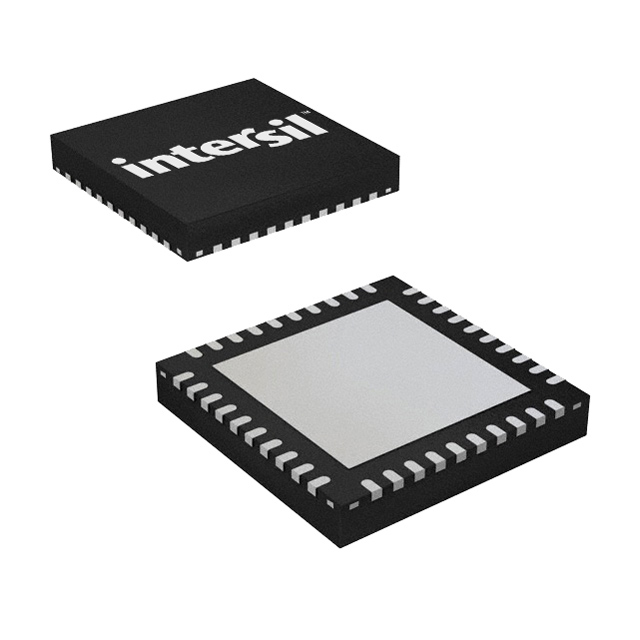

ISL9444IRZ-T7A
IC REG CTRLR BUCK 40QFNManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Controllers
Quality Control: Learn More
Renesas Electronics Corporation ISL9444IRZ-T7A is a 3-output, 2-phase synchronous buck controller IC. This device supports a wide input voltage range of 4.5V to 28V and features a switching frequency adjustable from 200kHz to 1.2MHz. The ISL9444IRZ-T7A offers advanced control features including Enable, Frequency Control, Phase Control, Power Fail, Power Good, Soft Start, and Tracking. Its robust design incorporates a synchronous rectifier for enhanced efficiency. The component is supplied in a 40-QFN (5x5) package suitable for surface mounting and is delivered on tape and reel. This controller is well-suited for applications in computing and industrial power systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz ~ 1.2MHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 28V |
| Supplier Device Package | 40-QFN (5x5) |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Frequency Control, Phase Control, Power Fail, Power Good, Soft Start, Tracking |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | - |
| Clock Sync | Yes |
| Number of Outputs | 3 |
