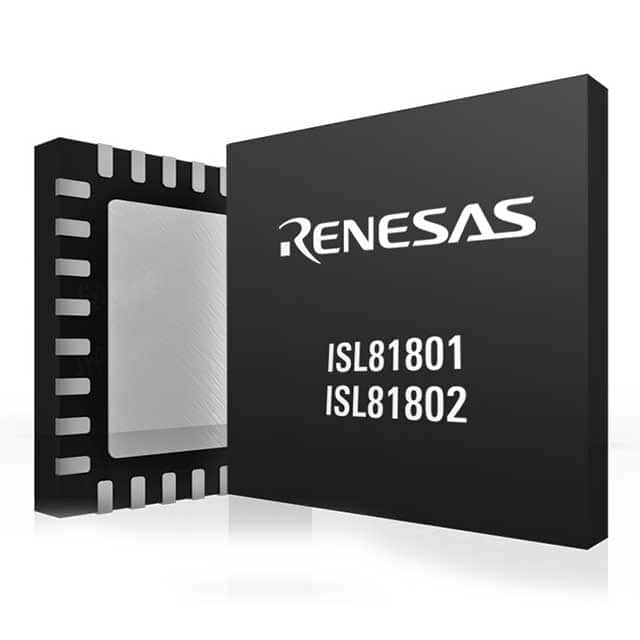

ISL81801FVEZ-T7A
80V BI-DIRECTIONAL BUCK-BOOST COManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Controllers
Quality Control: Learn More
The Renesas Electronics Corporation ISL81801FVEZ-T7A is an 80V bidirectional buck-boost controller IC. This versatile component enables step-up and step-down DC-DC conversion with a wide input voltage range of 4.5V to 80V. Featuring four outputs and two output phases, it supports transistor driver configurations. The ISL81801FVEZ-T7A operates with a switching frequency adjustable from 100kHz to 600kHz and includes synchronous rectification for enhanced efficiency. Control features encompass current limit, enable, off-time control, on-time control, phase control, power good indication, and power-on reset. This device is suitable for demanding applications in the automotive, industrial, and telecommunications sectors. The component is provided in a 32-TQFN (5x5) exposed pad package, supplied on tape and reel. Its operating temperature range is -40°C to 125°C (TA).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-WFQFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 600kHz |
| Topology | Buck-Boost |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 80V |
| Supplier Device Package | 32-TQFN (5x5) |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Enable, Off Time Control, On Time Control, Phase Control, Power Good, Power On Reset, |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | - |
| Clock Sync | Yes |
| Number of Outputs | 4 |
