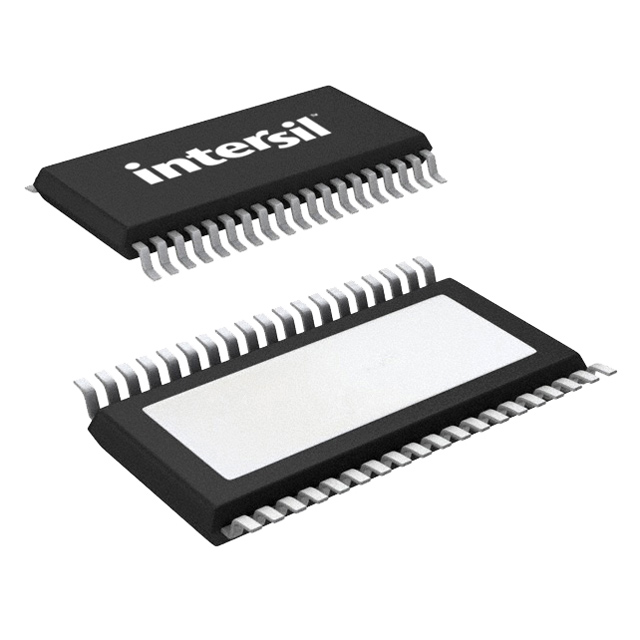

ISL81601FVEZ
60V 4 SWITCH SYNCH BUCK-BOOST PWManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck-Boost Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 38-HTSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 38-TFSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | PWM Signal |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 90kHz ~ 650kHz |
| Topology | Buck-Boost |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 60V |
| Supplier Device Package | 38-HTSSOP |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Enable, Power Good |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | - |
| Clock Sync | Yes |
| Number of Outputs | 1 |
