ISL78263ARZ-T7A
DUAL SYNC BUCK /BOOST CONTROLLERManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Controllers
Quality Control: Learn More

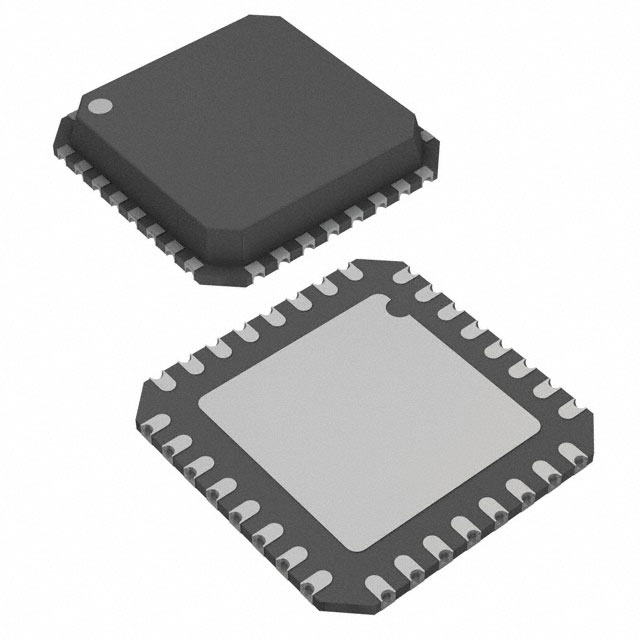

Buck-Boost Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 32-QFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-VFQFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount, Wettable Flank |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz ~ 2.2MHz |
| Topology | Buck-Boost |
| Voltage - Supply (Vcc/Vdd) | 6V ~ 42V |
| Supplier Device Package | 32-QFN (5x5) |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 98.75% |
| Clock Sync | Yes |
| Grade | Automotive |
| Number of Outputs | 2 |
| Qualification | AEC-Q100 |
