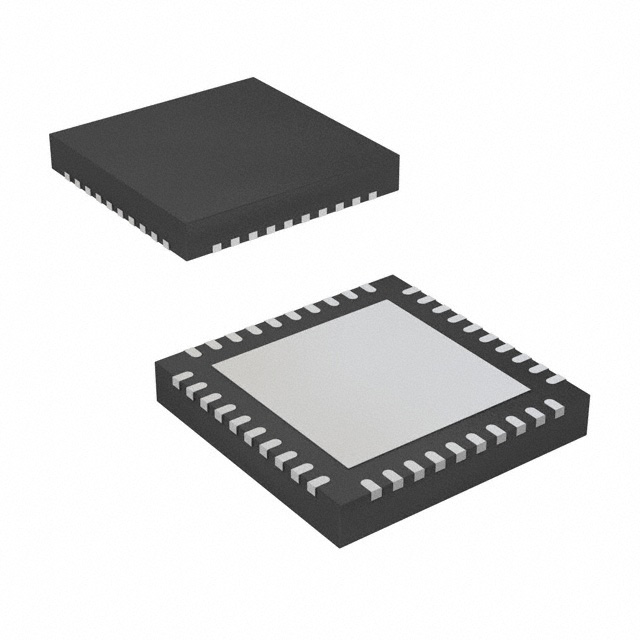

ISL78229ARZ-T
IC REG CTRLR BOOST PMBUS 40WQFNManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Controllers
Quality Control: Learn More
Boost Regulator Positive Output Step-Up I2C, PMBus DC-DC Controller IC 40-QFN (6x6)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 50kHz ~ 1.1MHz |
| Topology | Boost |
| Voltage - Supply (Vcc/Vdd) | 5V ~ 55V |
| Supplier Device Package | 40-QFN (6x6) |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Frequency Control, Phase Control, Power Good, Soft Start, Tracking |
| Serial Interfaces | I2C, PMBus |
| Output Phases | 2 |
| Duty Cycle (Max) | 89% |
| Clock Sync | Yes |
| Grade | Automotive |
| Number of Outputs | 2 |
| Qualification | AEC-Q100 |
Request a Quote
