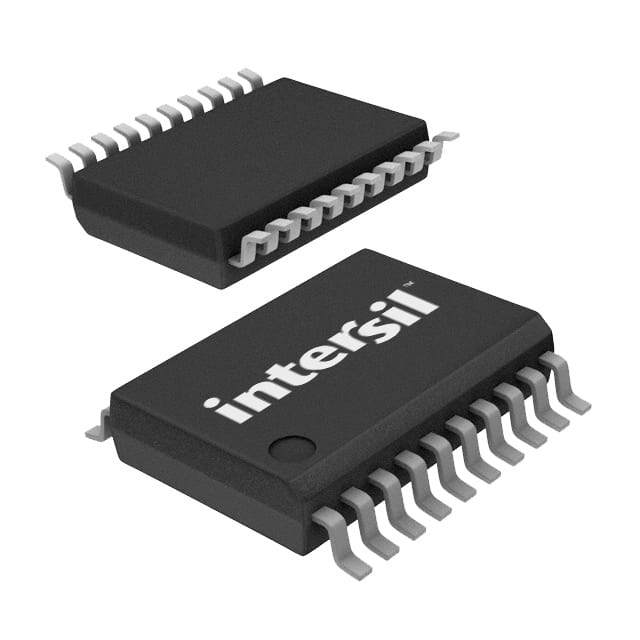

ISL78223AAZ
IC REG CTRLR FULL-BRIDGE 20QSOPManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Controllers
Quality Control: Learn More
Renesas Electronics Corporation ISL78223AAZ is a full-bridge DC-DC controller IC designed for automotive applications. This positive output, isolation-capable device supports both step-up and step-down conversion with a single output phase. Featuring frequency control, ramp, and soft-start capabilities, it operates with a switching frequency of up to 2MHz and a maximum duty cycle of 99%. The ISL78223AAZ is AEC-Q100 qualified and housed in a 20-QSOP package, suitable for surface mounting. Its voltage supply range is 9V to 16V, with an operating temperature range of -40°C to 105°C (TA). This component is commonly utilized in automotive power management systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-SSOP (0.154"", 3.90mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | Up to 2MHz |
| Topology | Full-Bridge |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 16V |
| Supplier Device Package | 20-QSOP |
| Synchronous Rectifier | Yes |
| Control Features | Frequency Control, Ramp, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 99% |
| Clock Sync | No |
| Grade | Automotive |
| Number of Outputs | 1 |
| Qualification | AEC-Q100 |
