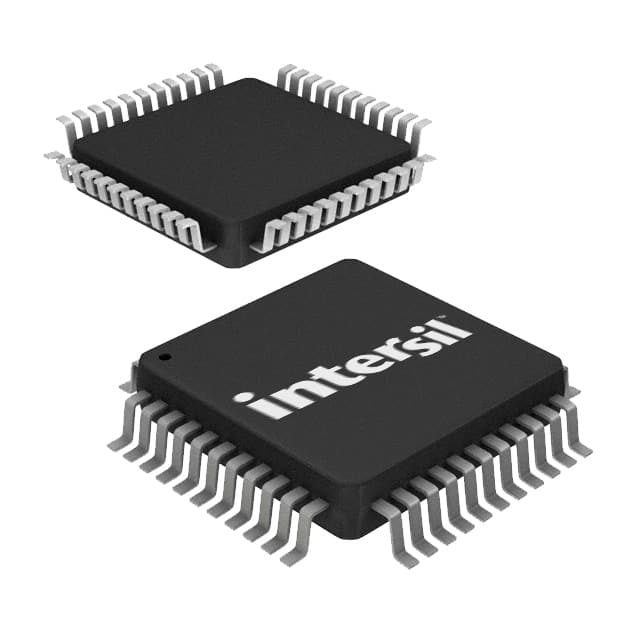

ISL78220ANEZ
IC REG CTRLR BOOST 44TQFPManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Controllers
Quality Control: Learn More
Boost Regulator Positive Output Step-Up DC-DC Controller IC 44-MQFP (10x10)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 44-QFP |
| Output Type | PWM Signal |
| Mounting Type | Surface Mount |
| Function | Step-Up |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 75kHz ~ 1MHz |
| Topology | Boost |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Supplier Device Package | 44-MQFP (10x10) |
| Synchronous Rectifier | - |
| Control Features | Enable, Frequency Control, Power Good, Soft Start |
| Serial Interfaces | - |
| Output Phases | 6 |
| Duty Cycle (Max) | 91.7% |
| Clock Sync | Yes |
| Grade | Automotive |
| Number of Outputs | 6 |
| Qualification | AEC-Q100 |
