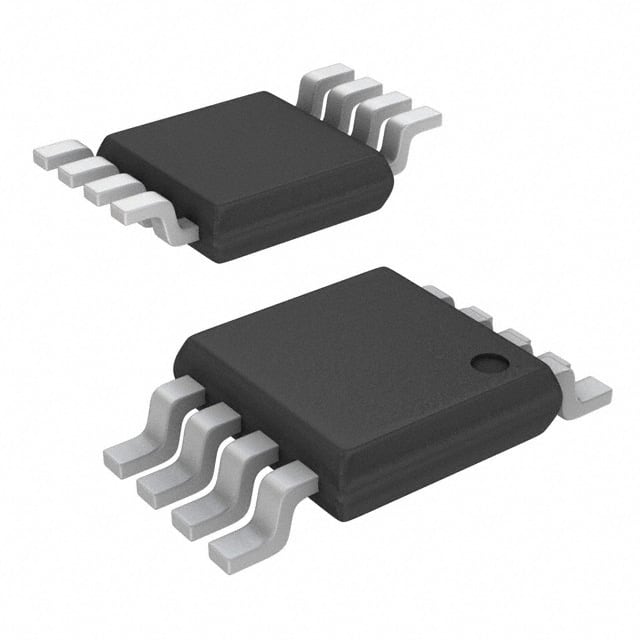

ISL78215AUZ-T7A
IC REG CTRLR BOOST/FLYBACK 8MSOPManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Controllers
Quality Control: Learn More
Renesas Electronics Corporation's ISL78215AUZ-T7A is a versatile DC-DC switching controller designed for automotive applications. This device supports both Boost and Flyback topologies, offering flexible power conversion solutions. It features a positive, isolation-capable output and is suitable for step-up or step-up/step-down voltage conversion. The ISL78215AUZ-T7A operates with a supply voltage range of 7.5V to 18V and can switch frequencies up to 2MHz, with a maximum duty cycle of 48%. Control features include current limiting and frequency control. This component is packaged in an 8-MSOP (8-TSSOP) and is supplied on tape and reel. Its functionality makes it relevant for automotive power management systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up, Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | Up to 2MHz |
| Topology | Boost, Flyback |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 18V |
| Supplier Device Package | 8-MSOP |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Frequency Control |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 48% |
| Clock Sync | No |
| Number of Outputs | 1 |
