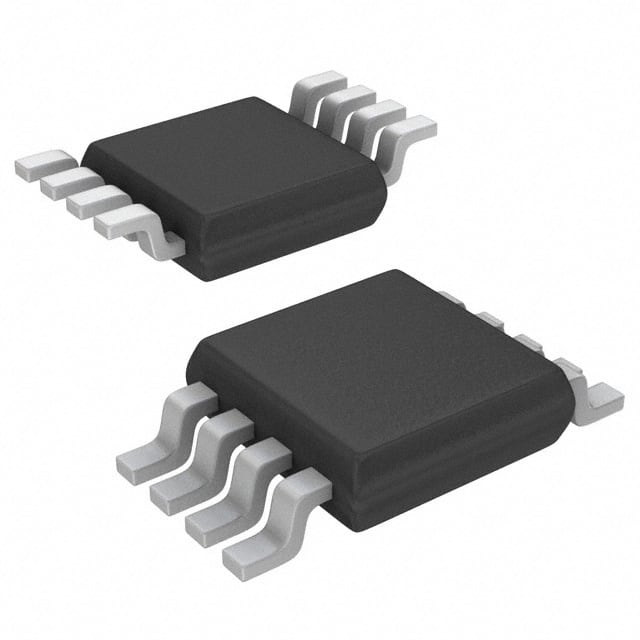

ISL78215AUZ-T
IC REG CTRLR BOOST/FLYBACK 8MSOPManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Controllers
Quality Control: Learn More
The Renesas Electronics Corporation ISL78215AUZ-T is a versatile DC-DC switching controller IC designed for high-performance power conversion applications. This device integrates a boost and flyback controller, supporting both step-up and step-up/step-down configurations. It features a positive, isolation-capable output and a single output phase. Operating with a supply voltage range of 7.5V to 18V, the ISL78215AUZ-T can achieve switching frequencies up to 2MHz, enabling compact and efficient power solutions. Key control features include current limiting and frequency control, with a maximum duty cycle of 48%. The synchronous rectifier capability further enhances efficiency. Housed in an 8-MSOP package, this component is suitable for surface mounting and is supplied on tape and reel. Its robust design makes it applicable in automotive and industrial sectors requiring reliable and efficient power regulation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up, Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | Up to 2MHz |
| Topology | Boost, Flyback |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 18V |
| Supplier Device Package | 8-MSOP |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Frequency Control |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 48% |
| Clock Sync | No |
| Number of Outputs | 1 |
