ISL68127IRAZ
PMBUS X+Y 7 PHASE DIGI CONTLR 48Manufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Controllers
Quality Control: Learn More

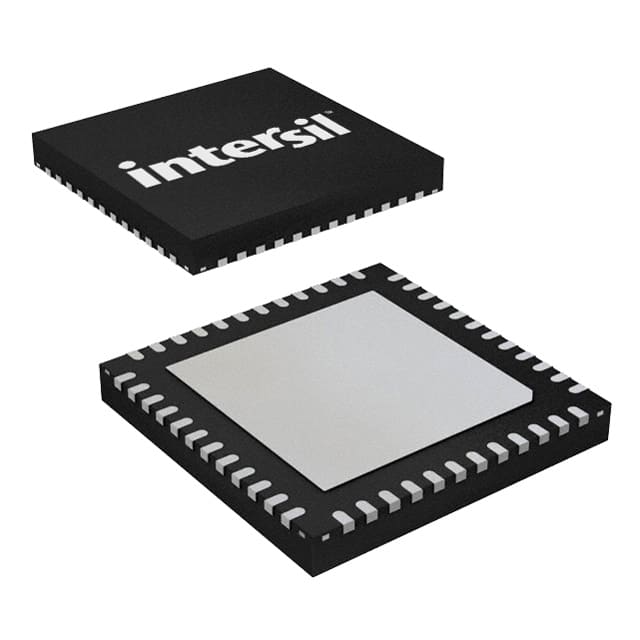

The Renesas Electronics Corporation ISL68127IRAZ is a 7-phase digital DC-DC controller IC. This component features PMBus serial interface for configuration and monitoring, enabling granular control of power delivery. Designed for demanding applications, it supports a switching frequency range of 200kHz to 1MHz and operates within a supply voltage of 3.135V to 3.465V. The ISL68127IRAZ is housed in a 48-QFN (6x6) exposed pad package, suitable for surface mount applications. Its robust design and advanced control features make it ideal for use in high-performance computing, networking equipment, and industrial power systems. The controller's output configuration is positive, with seven output phases capable of delivering PWM signals.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Output Type | PWM Signal |
| Mounting Type | Surface Mount |
| Function | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz ~ 1MHz |
| Topology | - |
| Voltage - Supply (Vcc/Vdd) | 3.135V ~ 3.465V |
| Supplier Device Package | 48-QFN (6x6) |
| Synchronous Rectifier | No |
| Control Features | Enable |
| Serial Interfaces | PMBus |
| Output Phases | 7 |
| Duty Cycle (Max) | - |
| Clock Sync | No |
| Number of Outputs | 7 |
