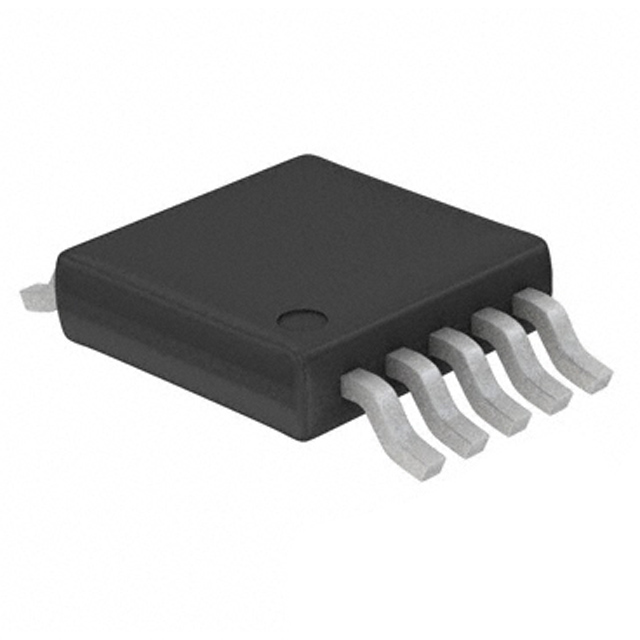

ISL6745AAUZ
IC REG CTRLR MULT TOP 10MSOPManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Controllers
Quality Control: Learn More
Renesas Electronics Corporation ISL6745AAUZ is a versatile DC-DC controller IC designed for high-performance power conversion applications. This component supports both full-bridge and half-bridge topologies, enabling step-up and step-down voltage regulation with isolation-capable outputs. Featuring frequency control and a soft-start function, the ISL6745AAUZ allows for precise management of output voltage. It operates with a supply voltage range of 9V to 16V and supports switching frequencies up to 1MHz, with a maximum duty cycle of 99%. The device is housed in a 10-MSOP package, suitable for surface mount applications. Its robust operating temperature range of -40°C to 105°C makes it ideal for demanding environments across industrial, automotive, and telecommunications sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | Up to 1MHz |
| Topology | Full-Bridge, Half-Bridge |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 16V |
| Supplier Device Package | 10-MSOP |
| Synchronous Rectifier | No |
| Control Features | Frequency Control, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 99% |
| Clock Sync | No |
| Number of Outputs | 2 |
