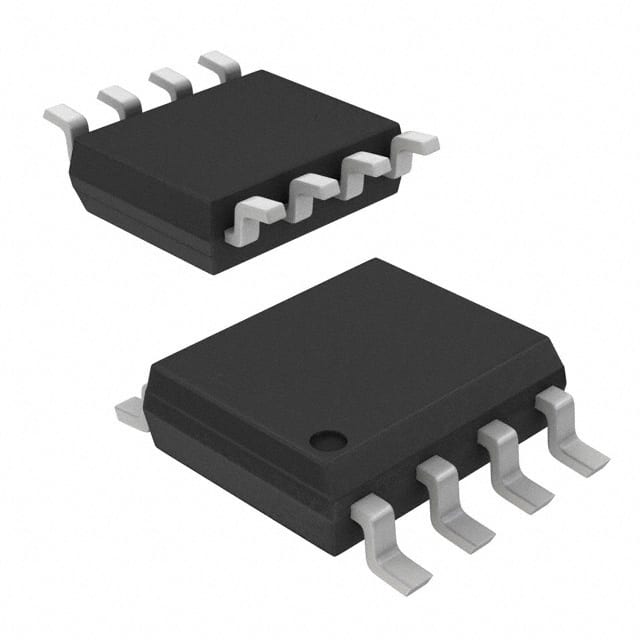

ISL6520ACBZ
IC REG CTRLR BUCK 8SOICManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Controllers
Quality Control: Learn More
Renesas Electronics Corporation ISL6520ACBZ is a single-phase, synchronous buck controller designed for efficient step-down DC-DC conversion. This device operates as a voltage mode controller with a fixed 300kHz switching frequency, facilitating compact power supply designs. The ISL6520ACBZ features a 100% maximum duty cycle and a positive output configuration, making it suitable for powering a variety of loads. Its output transistor driver capability simplifies system integration. The controller is housed in an 8-SOIC package, ideal for surface mount applications. Key performance characteristics include a supply voltage range of 4.5V to 5.5V and operation within a 0°C to 70°C ambient temperature range. This component is utilized in applications such as power supplies for computing, industrial automation, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Supplier Device Package | 8-SOIC |
| Synchronous Rectifier | Yes |
| Control Features | Phase Control |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 100% |
| Clock Sync | No |
| Number of Outputs | 1 |
