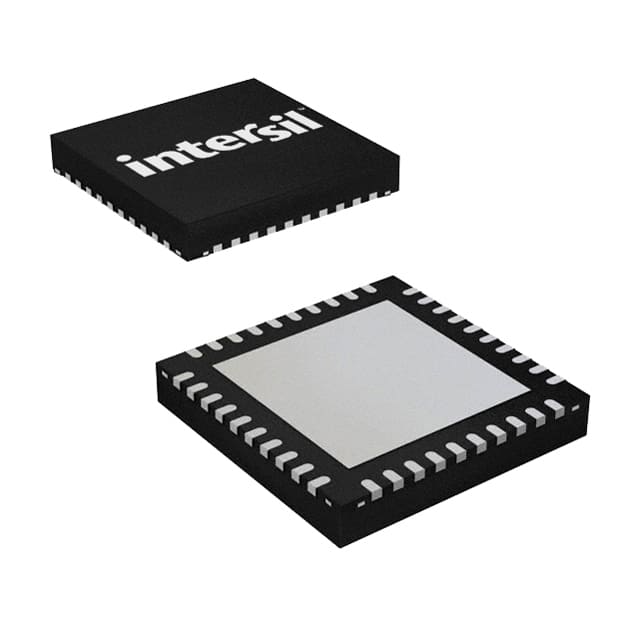

ISL6398IRTZ-TK
IC REG CTRLR BUCK PMBUS 40QFNManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Controllers
Quality Control: Learn More
Renesas Electronics Corporation's ISL6398IRTZ-TK is a highly integrated 6-phase PWM DC-DC controller designed for high-performance computing and server applications. This buck controller utilizes an advanced PMBus interface for digital control and monitoring, supporting I2C and SMBus serial communications. With a wide switching frequency range from 120kHz to 2.025MHz and a maximum duty cycle of 98%, it offers efficient power conversion for step-down applications. The device features multiple outputs and operates within a supply voltage of 4.75V to 5.25V, with an operating temperature range of -40°C to 85°C. Supplied in a 40-VFQFN exposed pad package, this component is ideal for surface mount configurations.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad |
| Output Type | PWM Signal |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 120kHz ~ 2.025MHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Supplier Device Package | 40-TQFN (5x5) |
| Synchronous Rectifier | No |
| Control Features | - |
| Serial Interfaces | I2C, PMBus, SMBus |
| Output Phases | 6 |
| Duty Cycle (Max) | 98% |
| Clock Sync | - |
| Number of Outputs | 6 |
