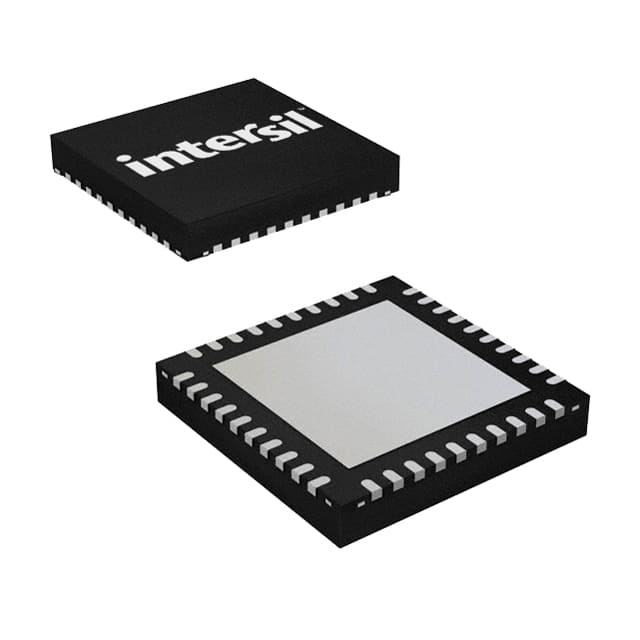

ISL6398IRTZ-T
IC REG CTRLR BUCK PMBUS 40TQFNManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck Regulator Positive Output Step-Down I2C, PMBus, SMBus DC-DC Controller IC 40-TQFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad |
| Output Type | PWM Signal |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 120kHz ~ 2.025MHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Supplier Device Package | 40-TQFN (5x5) |
| Synchronous Rectifier | No |
| Control Features | - |
| Serial Interfaces | I2C, PMBus, SMBus |
| Output Phases | 6 |
| Duty Cycle (Max) | 98% |
| Clock Sync | - |
| Number of Outputs | 6 |
