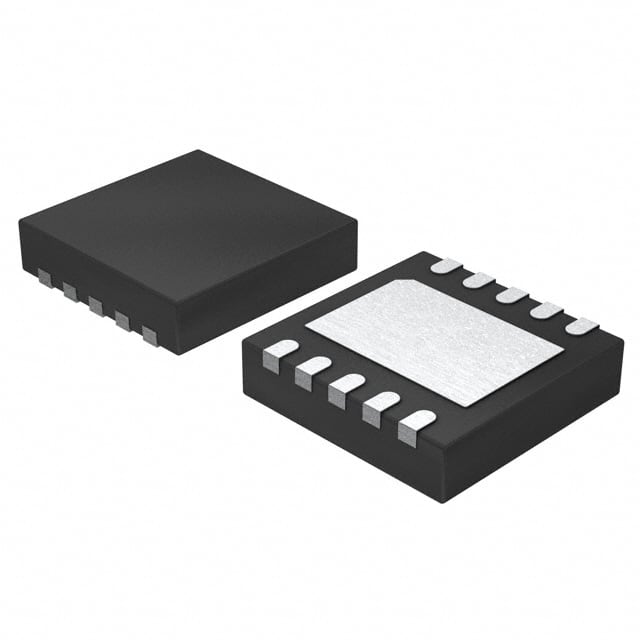

ISL6341IRZ
IC REG CTRLR BUCK 10-TDFNManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Controllers
Quality Control: Learn More
The Renesas Electronics Corporation ISL6341IRZ is a single-phase, step-down (buck) DC-DC controller designed for efficient power conversion. This component features a 4.5V to 14.4V supply voltage range and operates with a switching frequency of 300kHz. It offers precise control with enable, phase control, power good, and power-on reset functions. The ISL6341IRZ supports a maximum duty cycle of 85% and includes a synchronous rectifier for enhanced efficiency. Its output configuration is positive, and it functions as a transistor driver. Housed in a 10-TDFN-EP (3x3) package, this surface-mount device is suitable for applications requiring robust voltage regulation, including telecommunications, industrial automation, and computing systems. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 10-WFDFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 14.4V |
| Supplier Device Package | 10-TDFN-EP (3x3) |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Phase Control, Power Good, Power on Reset |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 85% |
| Clock Sync | No |
| Number of Outputs | 1 |
