ISL6341CRZ
IC REG CTRLR BUCK 10-TDFNManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Controllers
Quality Control: Learn More

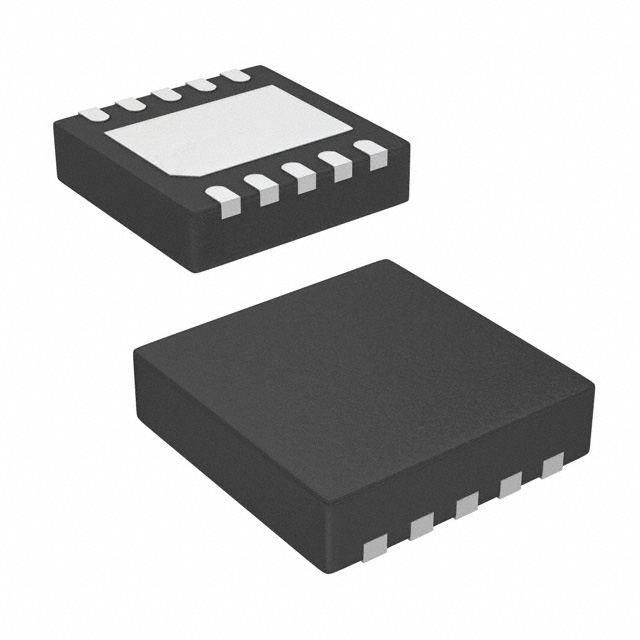

Renesas Electronics Corporation ISL6341CRZ is a single-phase, synchronous buck (step-down) DC-DC controller IC. This high-performance component features a fixed 300kHz switching frequency and supports a maximum duty cycle of 85%. Designed for efficient power conversion, it operates from a supply voltage range of 4.5V to 14.4V. The ISL6341CRZ offers comprehensive control features including Enable, Phase Control, Power Good indication, and Power-on Reset. Its output is configured as positive, and it drives a transistor output stage. The device is housed in a 10-TDFN-EP (3x3) package with an exposed pad, suitable for surface mounting. Applications for this controller can be found in computing, industrial, and power supply systems. The ISL6341CRZ is supplied in a tray.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 10-WFDFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 14.4V |
| Supplier Device Package | 10-TDFN-EP (3x3) |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Phase Control, Power Good, Power on Reset |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 85% |
| Clock Sync | No |
| Number of Outputs | 1 |
Request a Quote
