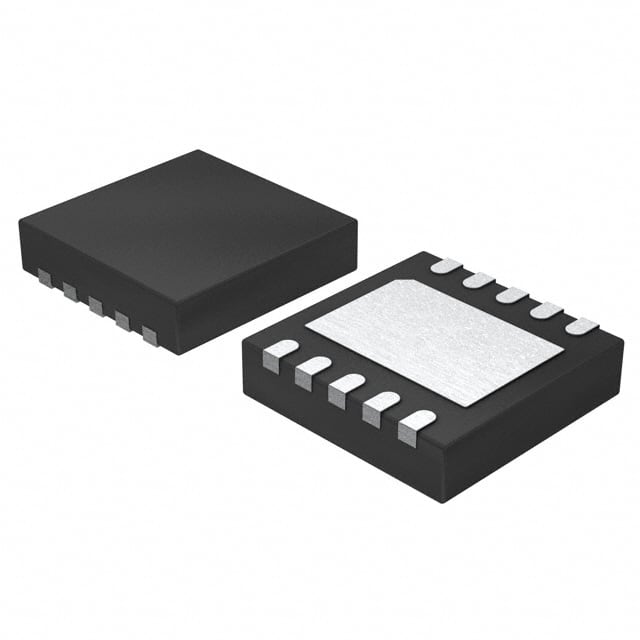

ISL6341AIRZ-T
IC REG CTRLR BUCK 10-TDFNManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Controllers
Quality Control: Learn More
Renesas Electronics Corporation ISL6341AIRZ-T is a single-phase, synchronous buck (step-down) DC-DC controller IC. This component utilizes a voltage-mode control architecture, operating with a switching frequency of up to 600kHz. The ISL6341AIRZ-T offers precise regulation for positive output voltages and features a maximum duty cycle of 75%. Control functionalities include Enable, Phase Control, Power Good, and Power-on Reset. Designed for surface mount applications, it is supplied in a 10-TDFN-EP (3x3) package with an exposed pad, provided on tape and reel. The operating voltage range is 4.5V to 14.4V, with an ambient operating temperature range of -40°C to 85°C. This controller is commonly employed in power supply designs for computing, industrial, and consumer electronics applications requiring efficient voltage conversion.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFDFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 600kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 14.4V |
| Supplier Device Package | 10-TDFN-EP (3x3) |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Phase Control, Power Good, Power on Reset |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 75% |
| Clock Sync | No |
| Number of Outputs | 1 |
