ZL9117MIRZ-TR5494
IC REGULATORManufacturer: Renesas Electronics Corporation
Categories: DC DC Converters
Quality Control: Learn More

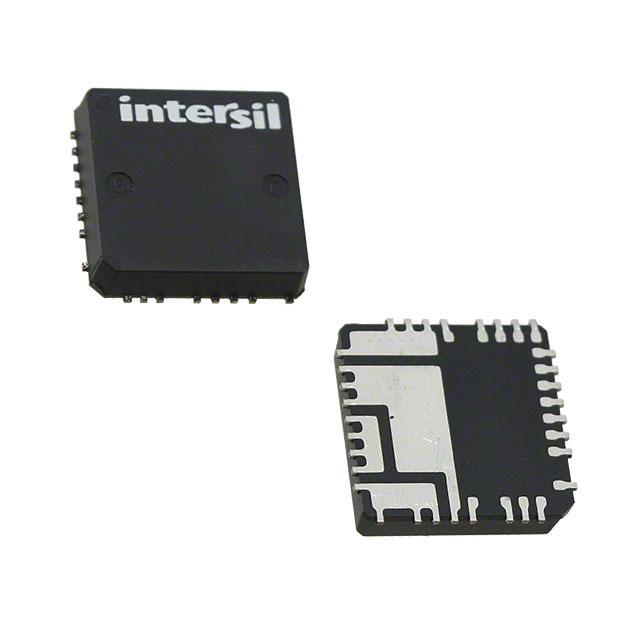

Renesas Electronics Corporation's ZL9117M series digital DC-DC converter, part number ZL9117MIRZ-TR5494, is a non-isolated Point-of-Load (PoL) module designed for high-density power delivery. This single-output device supports an adjustable output voltage range of 0.54V to 3.6V and can deliver up to 17A. The input voltage range is from 4.5V to 13.2V. Key features include I2C and PMBus™ interfaces for digital control and monitoring, alongside active-high enable and remote on/off capabilities. It also supports load sharing and adjustable output voltage. This module is surface-mount, packaged in a 21-PowerBQFN Module (21-QFN (15x15)), and operates within a temperature range of -40°C to 85°C. Its compact dimensions are 17.2mm x 11.5mm x 2.5mm. The ZL9117MIRZ-TR5494 is suitable for ITE (Commercial) applications.
Additional Information
Series: ZL9117MRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | Adjustable Output, I2C Interface, Load Sharing, PMBus™, Remote On/Off |
| Packaging | Tray |
| Package / Case | 21-PowerBQFN Module |
| Size / Dimension | 0.68"" L x 0.45"" W x 0.10"" H (17.2mm x 11.5mm x 2.5mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module, Digital |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 13.2V |
| Approval Agency | - |
| Efficiency | - |
| Current - Output (Max) | 17A |
| Supplier Device Package | 21-QFN (15x15) |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output 1 | 0.54 ~ 3.6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Control Features | Enable, Active High |
| Number of Outputs | 1 |
| Standard Number | - |
