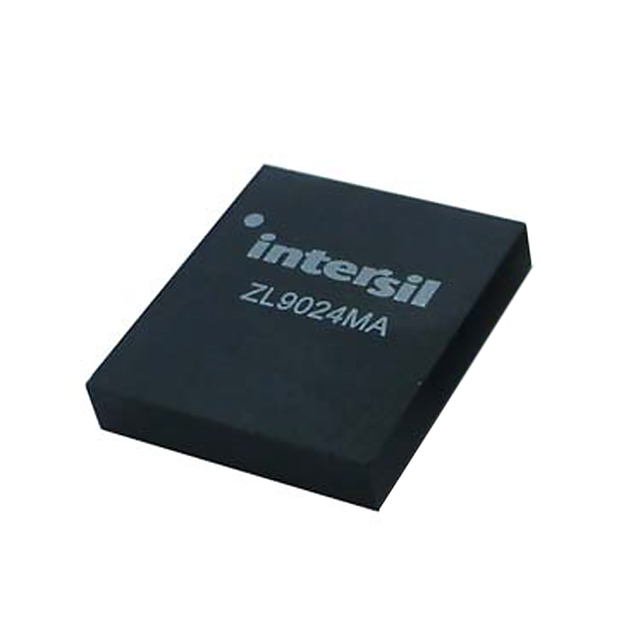

ZL9024MAIRZ
DC DC CONVERTER 0.6-1.5VManufacturer: Renesas Electronics Corporation
Categories: DC DC Converters
Quality Control: Learn More
Renesas Electronics Corporation ZL9024M Series digital non-isolated Point-of-Load (PoL) DC-DC converter module, part number ZL9024MAIRZ. This module provides a single output with a configurable voltage range from 0.6V to 1.5V, capable of delivering up to 33A. The input voltage range is specified from 2.75V to 4V. Key features include Over-Current Protection (OCP), Over-Temperature Protection (OTP), Over-Voltage Protection (OVP), and Under-Voltage Lockout (UVLO). The surface mountable module is housed in a 40-HDA Module (17x19) package, with dimensions of 0.75" L x 0.67" W x 0.14" H (19.1mm x 17.0mm x 3.6mm). It operates within an ambient temperature range of -40°C to 85°C. This component is suitable for ITE (Commercial) applications.
Additional Information
Series: ZL9024MRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, UVLO |
| Packaging | Tray |
| Package / Case | 40-SMD Module |
| Size / Dimension | 0.75"" L x 0.67"" W x 0.14"" H (19.1mm x 17.0mm x 3.6mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module, Digital |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 4V |
| Efficiency | - |
| Current - Output (Max) | 33A |
| Supplier Device Package | 40-HDA Module (17x19) |
| Voltage - Input (Min) | 2.75V |
| Voltage - Output 1 | 0.6 ~ 1.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Number of Outputs | 1 |
