RAA2106104GLG#AD0
DC DC CONVERTER 0.6-42VManufacturer: Renesas Electronics Corporation
Categories: DC DC Converters
Quality Control: Learn More

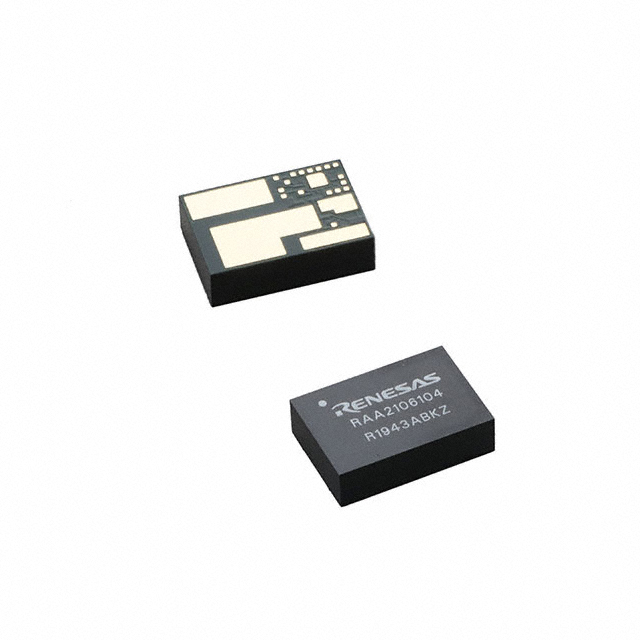

Renesas Electronics Corporation's RAA2106104GLG-AD0 is a non-isolated Point-of-Load (PoL) DC-DC converter module. This component features a single output with an adjustable voltage range of 0.6V to 42V and a maximum output current of 15A. The input voltage range is 7V to 54V, with a peak efficiency of 97.6%. Key features include adjustable output voltage and remote sense capabilities. The module is designed for surface mounting and comes in a 22-SMD Module package (22-HDA Module (19x13)), measuring 19.0mm x 13.0mm x 5.3mm. It operates across an ambient temperature range of -40°C to 125°C. This converter is suitable for applications within the ITE (Commercial) industry.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | Adjustable Output, Remote Sense |
| Packaging | Tray |
| Package / Case | 22-SMD Module |
| Size / Dimension | 0.75"" L x 0.51"" W x 0.21"" H (19.0mm x 13.0mm x 5.3mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 54V |
| Approval Agency | - |
| Efficiency | 97.6% |
| Current - Output (Max) | 15A |
| Supplier Device Package | 22-HDA Module (19x13) |
| Voltage - Input (Min) | 7V |
| Voltage - Output 1 | 0.6 ~ 42V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Control Features | - |
| Number of Outputs | 1 |
