RAA2100404GLG#MD0
DC DC CONVERTER 5VManufacturer: Renesas Electronics Corporation
Categories: DC DC Converters
Quality Control: Learn More

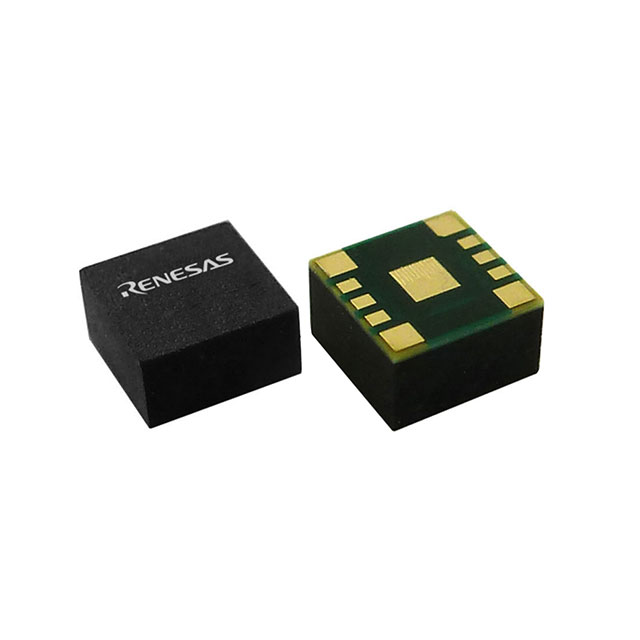

Renesas Electronics Corporation RAA2100404GLG-MD0 is a non-isolated Point-of-Load (PoL) DC-DC converter module. This component features a single output capable of providing an adjustable voltage from 0.6V to 5V with a maximum output current of 4A. The input voltage range is 2.7V to 5.5V. Key operating characteristics include an efficiency rating of 95% and operating temperatures from -40°C to 125°C. The RAA2100404GLG-MD0 is supplied in a 10-DFN (3x3) package with an exposed pad for surface mounting. It offers features such as adjustable output voltage and remote sensing. This module is commonly utilized in ITE (Commercial) applications. The physical dimensions are 3.0mm x 3.0mm x 1.8mm.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Output, Remote Sense |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-FDFN Exposed Pad |
| Size / Dimension | 0.12"" L x 0.12"" W x 0.07"" H (3.0mm x 3.0mm x 1.8mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 5.5V |
| Approval Agency | - |
| Efficiency | 95% |
| Current - Output (Max) | 4A |
| Supplier Device Package | 10-DFN (3x3) |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output 1 | 0.6 ~ 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Control Features | - |
| Number of Outputs | 1 |
| Standard Number | - |
