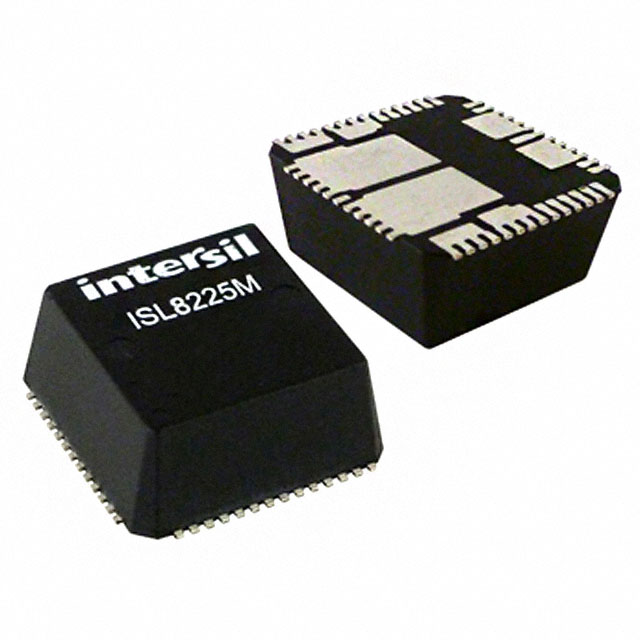

ISL8225MIRZ

DC DC CONVERTER 0.6-6V 0.6-6V

Manufacturer: Renesas Electronics Corporation

Categories: DC DC Converters

Quality Control: Learn More

Renesas Electronics Corporation ISL8225MIRZ is a non-isolated Point-of-Load (PoL) DC-DC converter module designed for high-density power applications. This dual-output module offers adjustable output voltages from 0.6V to 6V per channel, with each channel capable of delivering up to 15A. The input voltage range is 4.5V to 20V. Key features include remote on/off control, overcurrent protection (OCP), overtemperature protection (OTP), overvoltage protection (OVP), and undervoltage lockout (UVLO). With an efficiency rating of up to 95%, the ISL8225MIRZ is suitable for demanding ITE (Commercial) applications. The component is housed in a 26-QFN (17x17) package, measuring 17.0mm x 17.0mm x 7.5mm, and is designed for surface mount installation. It operates reliably within a temperature range of -40°C to 125°C.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:
Technical Details:
FeaturesRemote On/Off, OCP, OTP, OVP, UVLO
PackagingTray
Package / Case26-PowerBQFN Module
Size / Dimension0.67"" L x 0.67"" W x 0.30"" H (17.0mm x 17.0mm x 7.5mm)
Mounting TypeSurface Mount
TypeNon-Isolated PoL Module
Operating Temperature-40°C ~ 125°C
ApplicationsITE (Commercial)
Voltage - Input (Max)20V
Approval Agency-
Efficiency95%
Current - Output (Max)15A, 15A
Supplier Device Package26-QFN (17x17)
Voltage - Input (Min)4.5V
Voltage - Output 10.6 ~ 6V
Voltage - Output 20.6 ~ 6V
Voltage - Output 3-
Voltage - Output 4-
Number of Outputs2
