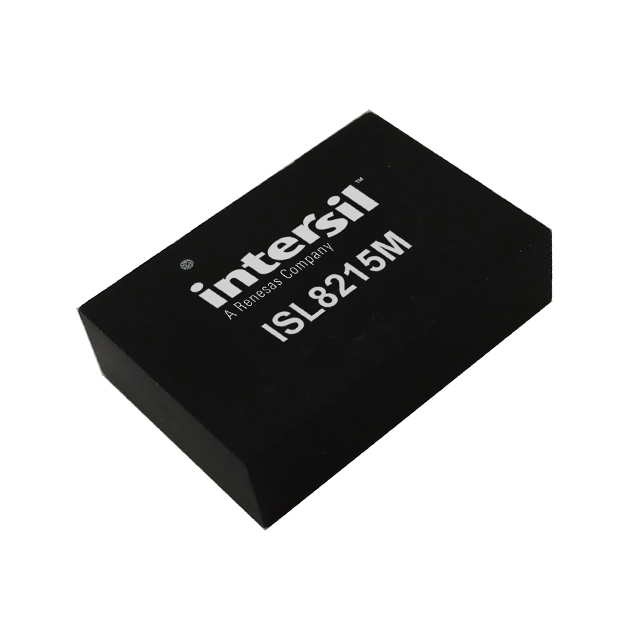

ISL8215MIRZ-T1

DC DC CONVERTER 0.6-12V

Manufacturer: Renesas Electronics Corporation

Categories: DC DC Converters

Quality Control: Learn More

The Renesas Electronics Corporation ISL8215M series DC DC converter, part number ISL8215MIRZ-T1, is a non-isolated Point-of-Load (PoL) module. This single-output device delivers a configurable output voltage range from 0.6V to 12V with a maximum current capability of 15A. It operates within an input voltage range of 7V to 42V and achieves a peak efficiency of 96.5%. Key protection features include Over-Current Protection (OCP), Over-Temperature Protection (OTP), Over-Voltage Protection (OVP), and Under-Voltage Lockout (UVLO). The module is housed in a 22-SMD Module package with dimensions of 19.0mm x 13.0mm x 5.3mm and is designed for surface mounting. It operates across an extended temperature range of -40°C to 125°C. This component is utilized in ITE (Commercial) applications. The ISL8215MIRZ-T1 is supplied on a tape and reel.

Additional Information

Series: ISL8215MRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
FeaturesOCP, OTP, OVP, UVLO
PackagingTape & Reel (TR)
Package / Case22-SMD Module
Size / Dimension0.75"" L x 0.51"" W x 0.21"" H (19.0mm x 13.0mm x 5.3mm)
Mounting TypeSurface Mount
TypeNon-Isolated PoL Module
Operating Temperature-40°C ~ 125°C
ApplicationsITE (Commercial)
Voltage - Input (Max)42V
Approval Agency-
Efficiency96.5%
Current - Output (Max)15A
Supplier Device Package22-HDA Module (19x13)
Voltage - Input (Min)7V
Voltage - Output 10.6 ~ 12V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Number of Outputs1
