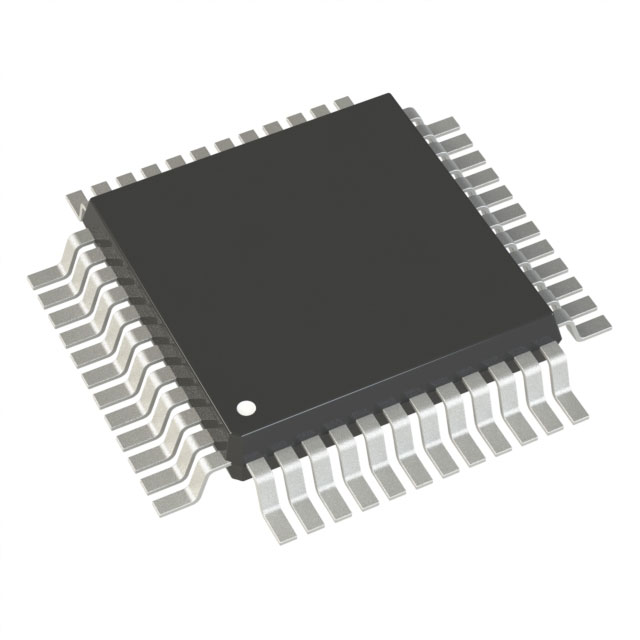

MPC961PAC
IC ZD BUFFER 32TQFPManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Renesas Electronics Corporation MPC961PAC is a Zero Delay Buffer IC designed for high-performance clock distribution. This component features a maximum frequency of 200MHz and supports LVPECL input with multiple LVCMOS outputs. The MPC961PAC integrates a Phase-Locked Loop (PLL) for precise clock synchronization and offers a 1:17 ratio for input to output clocking. It is supplied in a 32-TQFP (7x7) package for surface mounting and operates within a temperature range of -40°C to 85°C. The voltage supply range is 2.375V to 3.465V. This device is suitable for applications in networking infrastructure, telecommunications, and high-speed computing systems requiring deterministic clock latency.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-LQFP |
| Mounting Type | Surface Mount |
| Output | LVCMOS |
| Frequency - Max | 200MHz |
| Type | Zero Delay Buffer |
| Input | LVPECL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.375V ~ 3.465V |
| Ratio - Input:Output | 1:17 |
| Differential - Input:Output | Yes/No |
| Supplier Device Package | 32-TQFP (7x7) |
| PLL | Yes |
| Divider/Multiplier | No/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
