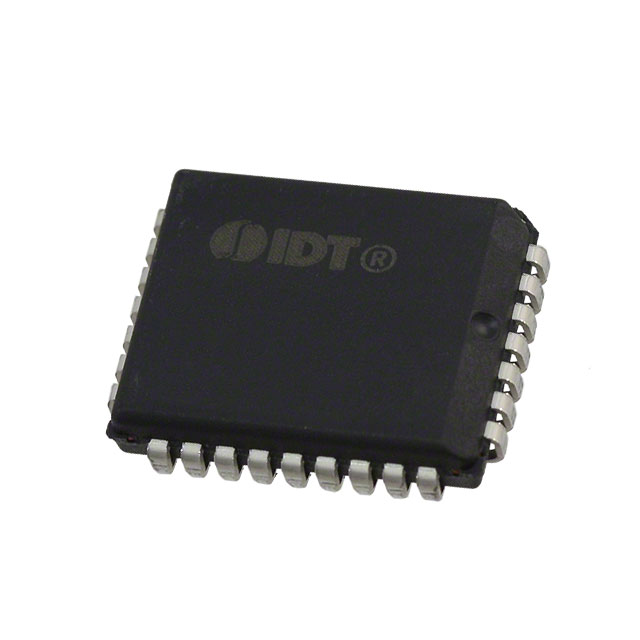

IDT5V991A-2J
IC PLL CLOCK DRIVER 32PLCCManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Renesas Electronics Corporation's IDT5V991A-2J is a PLL Clock Driver IC from the TurboClock™ series. This component is designed for clock generation and distribution, featuring a single circuit with a maximum frequency of 85MHz. It supports a 1:8 input-to-output ratio with both divider and multiplier functions. The input and output levels are LVTTL compatible. The device incorporates a PLL with a bypass option for flexible clock management. Operating within a voltage supply range of 3V to 3.6V, it is suitable for applications requiring precise clock synchronization. The IDT5V991A-2J is packaged in a 32-PLCC (J-Lead) format, intended for surface mounting. This IC finds application in various industries, including telecommunications and computing.
Additional Information
Series: TurboClock™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Output | LVTTL |
| Frequency - Max | 85MHz |
| Type | PLL Clock Driver |
| Input | LVTTL |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3V ~ 3.6V |
| Ratio - Input:Output | 1:8 |
| Differential - Input:Output | No/No |
| Supplier Device Package | 32-PLCC (14x11.46) |
| PLL | Yes with Bypass |
| Divider/Multiplier | Yes/Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
