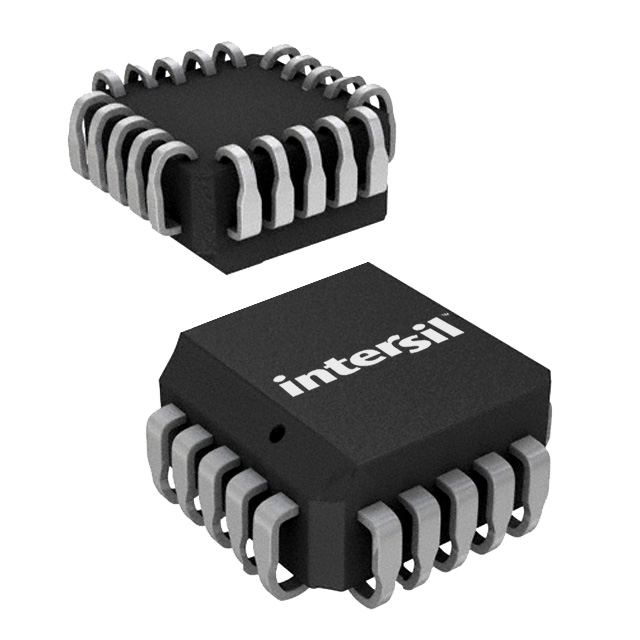

CS82C84AZ
IC CLOCK GENERATOR 20PLCCManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Renesas Electronics Corporation CS82C84AZ is a clock generator, clock synchronizer, and fanout distribution IC. This component operates with a maximum frequency of 25MHz and features TTL input and output. The CS82C84AZ provides a 1:3 input to output ratio and includes a divider function. It is packaged in a 20-PLCC (J-Lead) format suitable for surface mounting. The operating temperature range is 0°C to 70°C, with a supply voltage requirement of 4.5V to 5.5V. This device finds application in various industries including industrial automation and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Output | TTL |
| Frequency - Max | 25MHz |
| Type | Clock Generator, Clock Synchronizer, Fanout Distribution |
| Input | TTL |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Ratio - Input:Output | 1:3 |
| Differential - Input:Output | No/No |
| Supplier Device Package | 20-PLCC (9x9) |
| PLL | No |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
