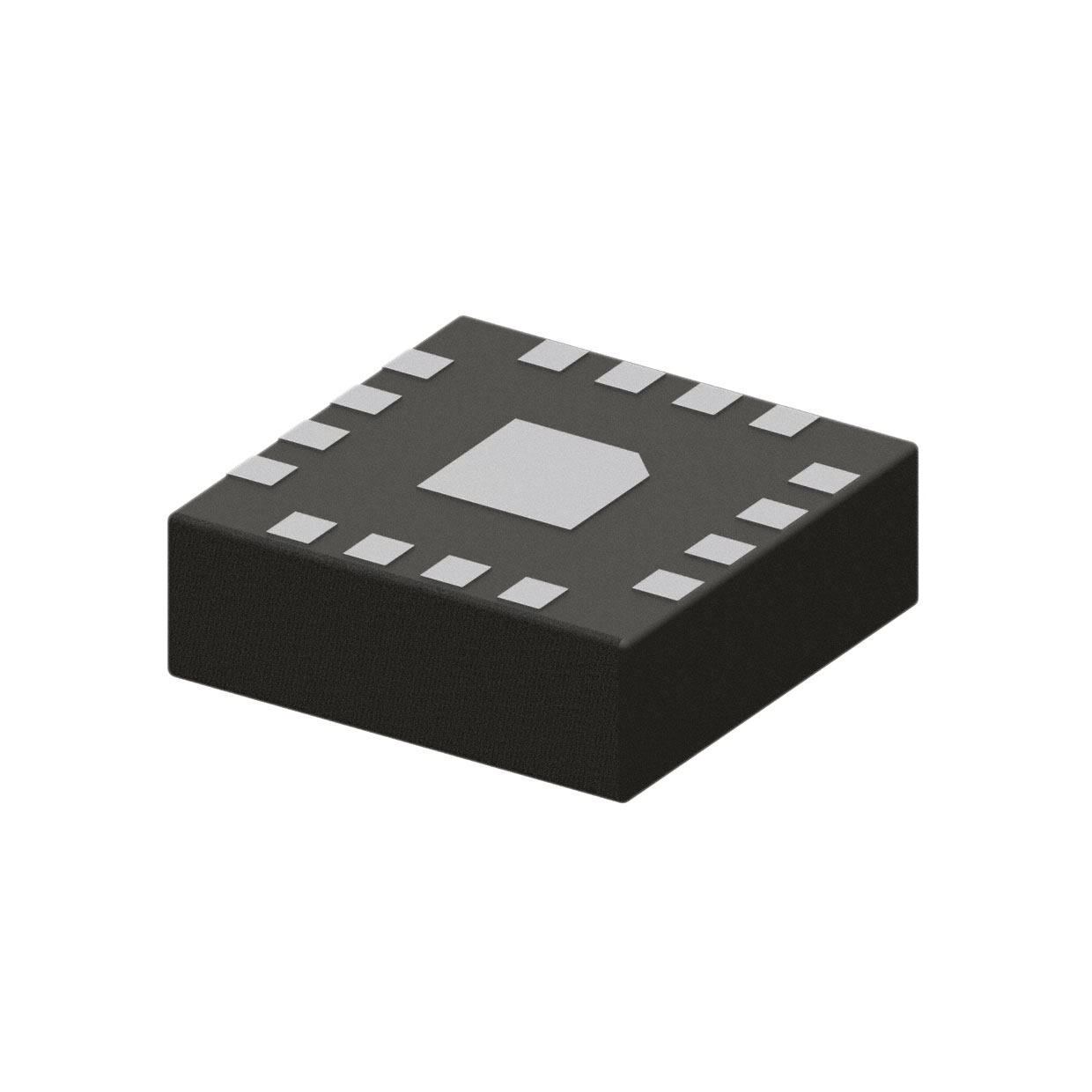

9FGV1006A003LTGI
IC CLOCK GENERATOR 16LGAManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Renesas Electronics Corporation's 9FGV1006A003LTGI is a PhiClock™ series clock generator. This electronic component offers a maximum frequency of 325MHz and features a 1:4 ratio for input to output. It supports a variety of input types including HCSL, LVCMOS, LVDS, and Crystal, with output options for HCSL, LVCMOS, LVDS, and LVPECL. The device is designed with a 16-TFLGA exposed pad package and is suitable for surface mount applications. Operating within a temperature range of -40°C to 85°C, it requires a supply voltage between 1.71V and 3.465V. This clock generator is a key component in applications such as networking, telecommunications, and data centers, where precise clock distribution is critical.
Additional Information
Series: PhiClock™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 16-TFLGA Exposed Pad |
| Mounting Type | Surface Mount |
| Output | HCSL, LVCMOS, LVDS, LVPECL |
| Frequency - Max | 325MHz |
| Type | Clock Generator |
| Input | HCSL, LVCMOS, LVDS, Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.71V ~ 3.465V |
| Ratio - Input:Output | 1:4 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 16-LGA (3x3) |
| PLL | Yes |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
