9FGV1004BQ536LTGI
IC CLOCK GENERATOR 24LGAManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Renesas Electronics Corporation's 9FGV1004BQ536LTGI is a PhiClock™ series clock generator. This 24-LFLGA Exposed Pad device offers flexible clock generation capabilities supporting multiple input and output standards including HCSL, LVCMOS, LVDS, and Crystal inputs, and CML, HCSL, LP-HCSL, LVCMOS, LVDS, and LVPECL outputs. It features a 1:6 ratio for input to output configuration and supports a maximum frequency of 325MHz, with specific capabilities at 156.25MHz and 200MHz. The component includes a Phase-Locked Loop (PLL) and divider functionality. It is designed for surface mounting and operates within an ambient temperature range of -40°C to 85°C. This device is suitable for applications in networking, computing, and telecommunications infrastructure.
Additional Information
Series: PhiClock™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |

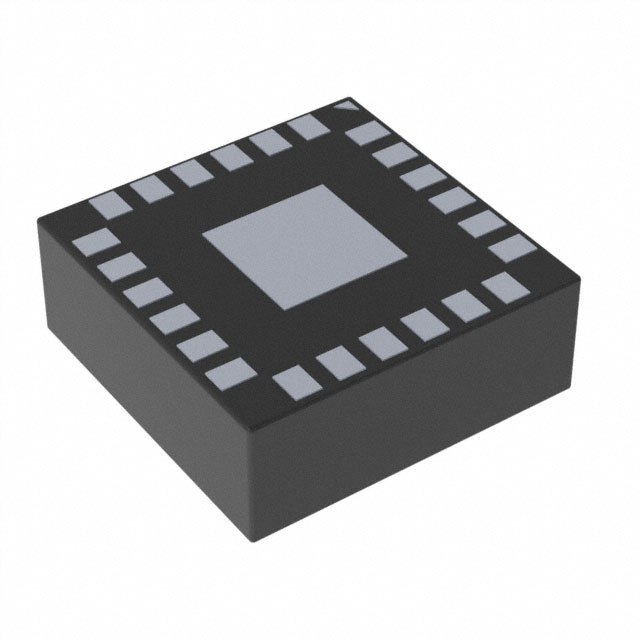

| Package / Case | 24-LFLGA Exposed Pad |
| Mounting Type | Surface Mount |
| Output | CML, HCSL, LP-HCSL, LVCMOS, LVDS, LVPECL |
| Frequency - Max | 156.25MHz, 200MHz, 325MHz |
| Type | Clock Generator |
| Input | HCSL, LVCMOS, LVDS, Crystal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V |
| Ratio - Input:Output | 1:6 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 24-LGA (4x4) |
| PLL | Yes |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
