9FGV1004B118NBGI8
IC CLOCK GENERATOR 24VFQFPNManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More

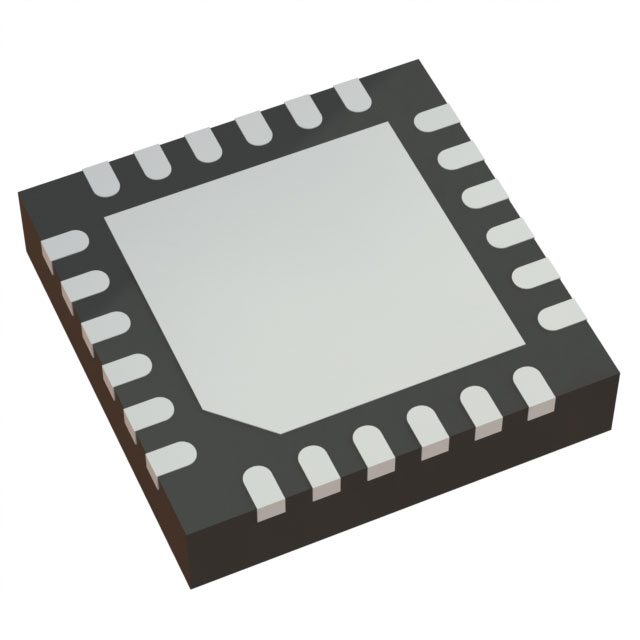

Renesas Electronics Corporation's 9FGV1004B118NBGI8 is a PhiClock™ series clock generator. This device supports multiple frequencies up to 325MHz, including 156.25MHz and 200MHz, with a configurable input-to-output ratio of 1:6. It offers flexible input compatibility with HCSL, LVCMOS, LVDS, and crystal sources, and provides a wide array of output formats such as CML, HCSL, LP-HCSL, LVCMOS, LVDS, and LVPECL. The 9FGV1004B118NBGI8 features an integrated PLL and is housed in a 24-VFQFPN (4x4) exposed pad package, suitable for surface mounting. Operating within a temperature range of -40°C to 85°C, this component is designed for high-performance applications in networking, data centers, and telecommunications infrastructure. The device supports multiple supply voltage ranges, including 1.71V to 1.89V, 2.375V to 2.625V, and 3.135V to 3.465V. It is supplied in Tape & Reel packaging.
Additional Information
Series: PhiClock™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | CML, HCSL, LP-HCSL, LVCMOS, LVDS, LVPECL |
| Frequency - Max | 156.25MHz, 200MHz, 325MHz |
| Type | Clock Generator |
| Input | HCSL, LVCMOS, LVDS, Crystal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V |
| Ratio - Input:Output | 1:6 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 24-VFQFPN (4x4) |
| PLL | Yes |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
