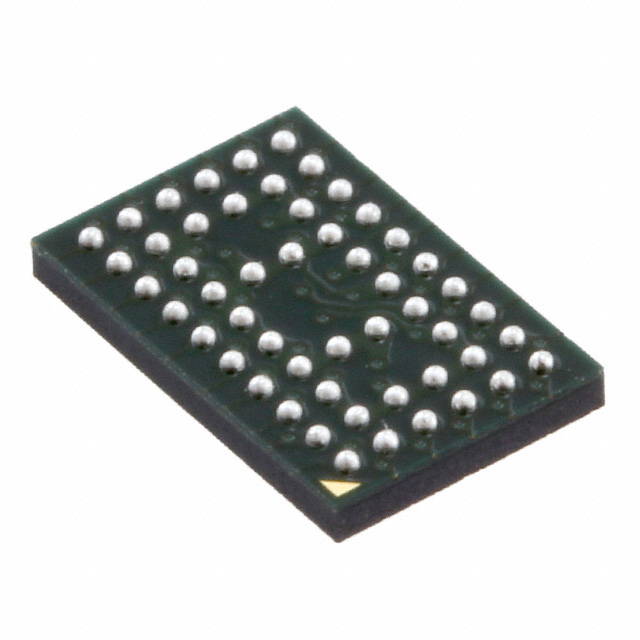

97U877AHLFT
IC DRIVER PLL 52CABGAManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Renesas Electronics Corporation 97U877AHLFT is a single-circuit Phase-Locked Loop (PLL) driver IC operating up to 370MHz. This device features a 1:10 input to output ratio and supports differential clock input and output. The output format is SSTL-18, suitable for high-speed signal integrity applications. The PLL includes a bypass function for flexible clock management. Designed for surface mount installation, it is provided in a 52-CABGA package, specifically a 52-VFBGA, on tape and reel. Operating within a temperature range of 0°C to 70°C, this component requires a supply voltage between 1.7V and 1.9V. This PLL driver is commonly utilized in telecommunications, networking equipment, and computing systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 52-VFBGA |
| Mounting Type | Surface Mount |
| Output | SSTL-18 |
| Frequency - Max | 370MHz |
| Type | Driver, PLL |
| Input | Clock |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 1.7V ~ 1.9V |
| Ratio - Input:Output | 1:10 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 52-CABGA (4.5x7.0) |
| PLL | Yes with Bypass |
| Divider/Multiplier | No/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
