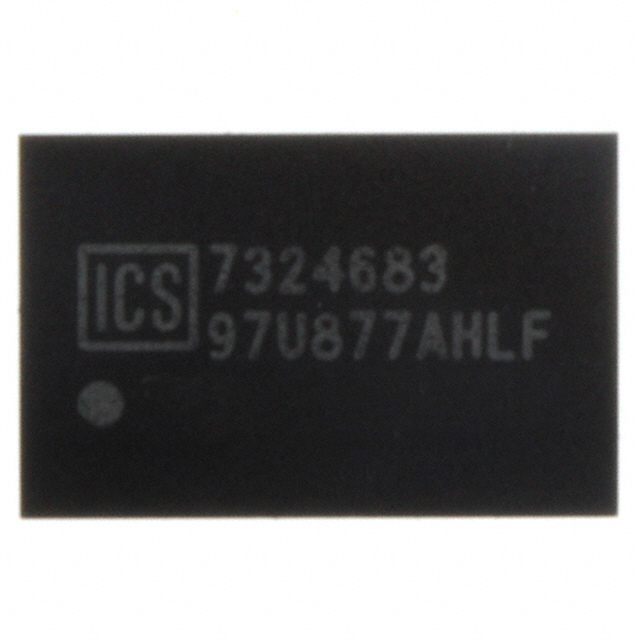

97U877AHLF
IC DRIVER PLL 52CABGAManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Renesas Electronics Corporation's 97U877AHLF is a versatile PLL driver IC operating up to 370MHz. This component features a 1:10 ratio for input to output, with differential input and output capabilities. It integrates a Phase-Locked Loop (PLL) with bypass functionality, designed for precise clock generation and frequency synthesis. The device supports SSTL-18 output signaling and requires a single circuit. With a voltage supply range of 1.7V to 1.9V, it is suitable for surface mount applications, provided in a 52-CABGA (4.5x7.0) package. This component finds application in various demanding industries, including telecommunications and computing.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 52-VFBGA |
| Mounting Type | Surface Mount |
| Output | SSTL-18 |
| Frequency - Max | 370MHz |
| Type | Driver, PLL |
| Input | Clock |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 1.7V ~ 1.9V |
| Ratio - Input:Output | 1:10 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 52-CABGA (4.5x7.0) |
| PLL | Yes with Bypass |
| Divider/Multiplier | No/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
