8V44S269NLGI
IC CLOCK SYNTHESIZER 48VFQFPNManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More

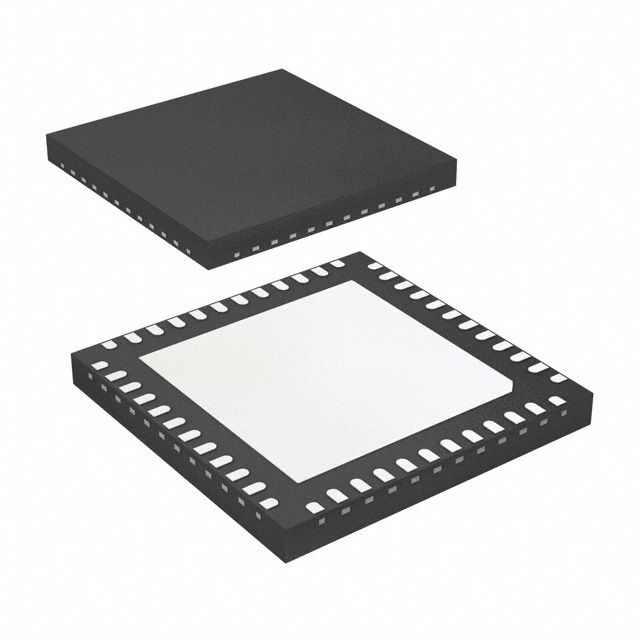

Renesas Electronics Corporation's 8V44S269NLGI is a high-performance Clock Synthesizer, operating up to 125MHz. This device integrates a Phase-Locked Loop (PLL) to generate precise clock signals. It accepts clock or crystal inputs and offers LVCMOS and LVDS outputs, with an input-to-output ratio configurable from 2:10. The 8V44S269NLGI is designed for surface mount applications, housed in a 48-VFQFPN (7x7) exposed pad package. Its operating temperature range is -55°C to 105°C. This component is suitable for demanding applications in networking infrastructure and industrial automation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | LVCMOS, LVDS |
| Frequency - Max | 125MHz |
| Type | Clock Synthesizer |
| Input | Clock, Crystal |
| Operating Temperature | -55°C ~ 105°C (TA) |
| Voltage - Supply | 2.375V ~ 2.625V, 3.135V ~ 3.465V |
| Ratio - Input:Output | 2:10 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 48-VFQFPN (7x7) |
| PLL | Yes |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
