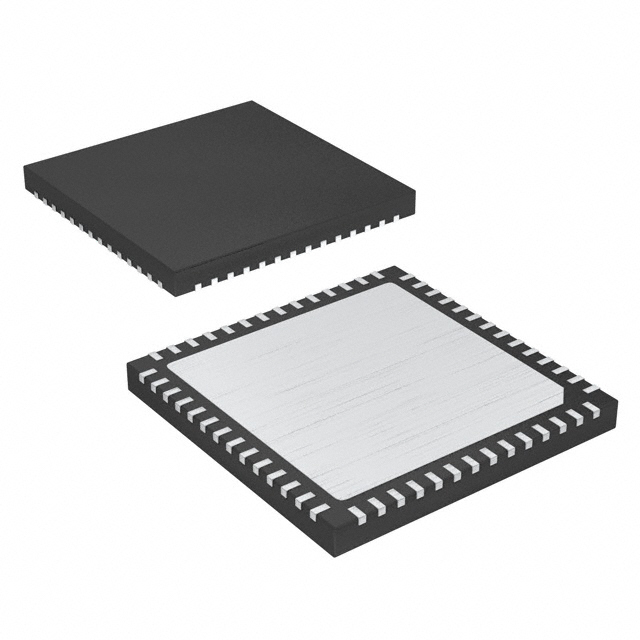

8T49N285A-996NLGI
IC JITTER ATTEN 56VFQFPNManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Renesas Electronics Corporation's 8T49N285A-996NLGI is a high-performance Jitter Attenuator IC from the FemtoClock® NG series. This single-circuit device supports a maximum frequency of 1GHz and features robust input compatibility with HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, and Crystal signals. Its output capabilities include HCSL, LVCMOS, LVDS, and LVPECL. The 8T49N285A-996NLGI offers differential input/output, a selectable divider/multiplier function, and includes a PLL with bypass. The device operates within a voltage range of 2.375V to 3.465V and is designed for surface mounting in a 56-VFQFN Exposed Pad package. Operating temperatures range from -40°C to 85°C. This component is suitable for applications in telecommunications, data networking, and high-speed computing.
Additional Information
Series: FemtoClock® NGRoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: Not For New DesignsPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 56-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | HSCL, LVCMOS, LVDS, LVPECL |
| Frequency - Max | 1GHz |
| Type | Jitter Attenuator |
| Input | HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.375V ~ 3.465V |
| Ratio - Input:Output | 3:8 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 56-VFQFPN (8x8) |
| PLL | Yes with Bypass |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
