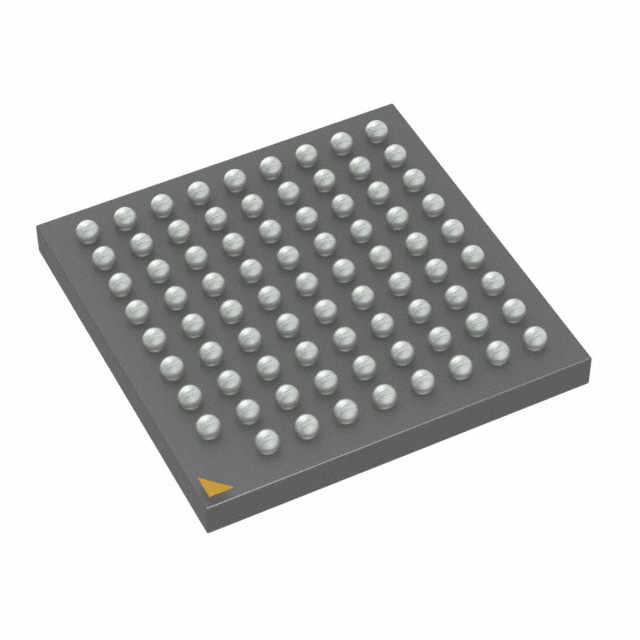

8T49N244A-999ASGI
IC CLK GENERATOR LVPECL 80BGAManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Renesas Electronics Corporation's 8T49N244A-999ASGI is a high-performance clock generator from the FemtoClock® NG series. This 80-LBGA packaged device provides a single output circuit with a maximum frequency of 644.53MHz. It supports a wide range of input signaling standards including HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, and LVTTL, with differential input and output capabilities. The 8T49N244A-999ASGI features a PLL with a bypass function and a configurable input-to-output ratio of 5:4. Designed for surface mount applications, this component operates within a temperature range of -40°C to 85°C and requires a supply voltage between 2.375V and 2.625V. This device is commonly utilized in telecommunications, networking, and high-speed computing applications where precise clock distribution is critical.
Additional Information
Series: FemtoClock® NGRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 80-LBGA |
| Mounting Type | Surface Mount |
| Output | LVDS |
| Frequency - Max | 644.53MHz |
| Input | HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.375V ~ 2.625V |
| Ratio - Input:Output | 5:4 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 80-CABGA (10x10) |
| PLL | Yes with Bypass |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
