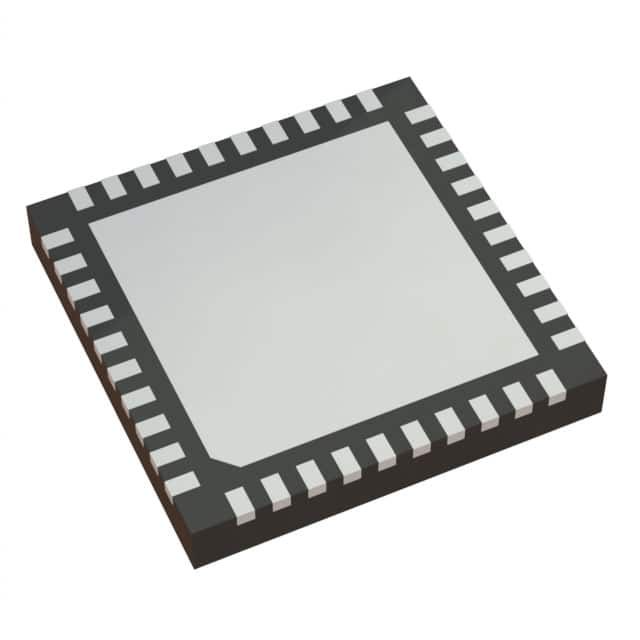

8T49N105A-008KILF
IC FREQ TRANS 40VFQFPNManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
The Renesas Electronics Corporation 8T49N105A-008KILF is a FemtoClock® NG series frequency translator IC. This single-circuit device supports a maximum frequency of 1.3GHz and offers differential input and output capabilities. Its inputs are compatible with HCSL, LVDS, LVHSTL, LVPECL, and crystal signals, while its outputs provide LVDS and LVPECL interfaces. The 8T49N105A-008KILF features a 2:1 input-to-output ratio and includes a PLL with bypass functionality. Designed for surface mounting, it is housed in a 40-VFQFN exposed pad package. Operating temperatures range from -40°C to 85°C, with supply voltage options of 2.375V to 2.625V and 3.135V to 3.465V. This component is utilized in applications such as networking, data centers, and telecommunications infrastructure.
Additional Information
Series: FemtoClock® NGRoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 40-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | LVDS, LVPECL |
| Frequency - Max | 1.3GHz |
| Type | Frequency Translator |
| Input | HCSL, LVDS, LVHSTL, LVPECL, Crystal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.375V ~ 2.625V, 3.135V ~ 3.465V |
| Ratio - Input:Output | 2:1 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 40-VFQFPN (6x6) |
| PLL | Yes with Bypass |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
