844003BGI-01LF
IC FREQ SYNTH 24TSSOPManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Renesas Electronics Corporation FemtoClock® 844003BGI-01LF is a versatile frequency synthesizer IC. This component supports a maximum frequency of 680MHz and features a 2:3 input to output ratio. It accepts LVCMOS, LVTTL, and crystal inputs. The output is LVDS. The device integrates a PLL with bypass functionality and includes divider/multiplier capabilities. Designed for surface mount applications, the 844003BGI-01LF is housed in a 24-TSSOP-EP package with an exposed pad, measuring 0.173" (4.40mm) in width. It operates within a voltage range of 3.135V to 3.465V and functions across an industrial temperature range of -40°C to 85°C. This component is commonly utilized in networking, telecommunications, and computing applications.
Additional Information
Series: FemtoClock®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |

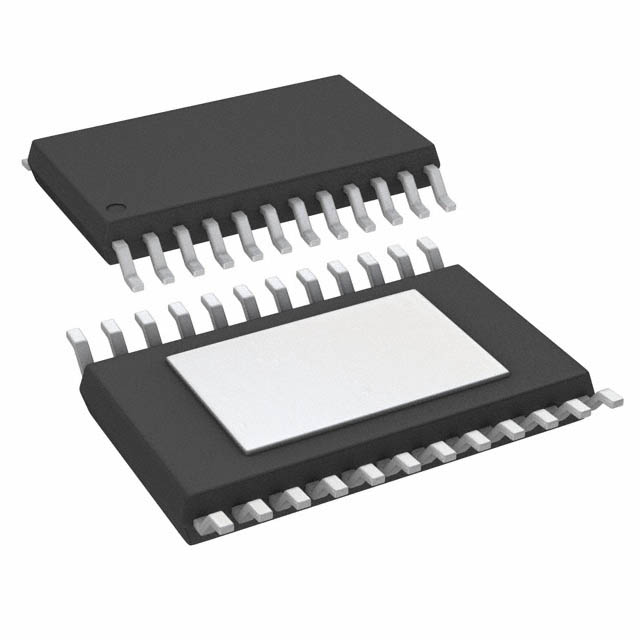

| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Output | LVDS |
| Frequency - Max | 680MHz |
| Type | Frequency Synthesizer |
| Input | LVCMOS, LVTTL, Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Ratio - Input:Output | 2:3 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 24-TSSOP-EP |
| PLL | Yes with Bypass |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
