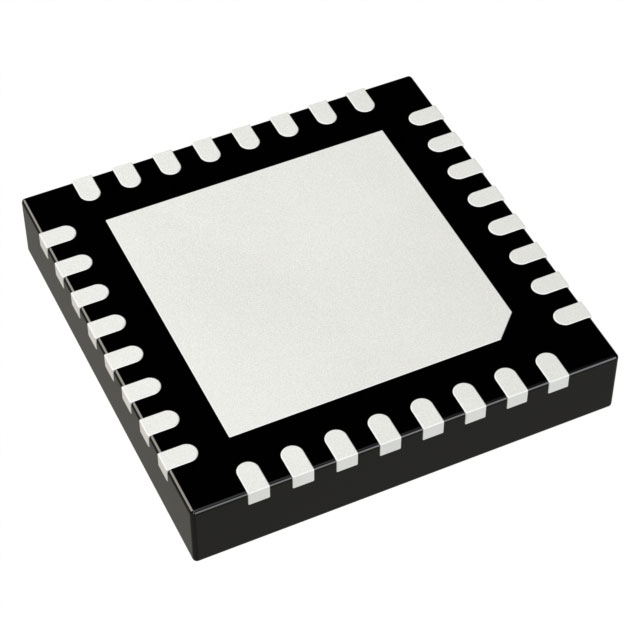

productimage

843S304BKI-100LFT

IC CLOCK SYNTHESIZER 32VFQFPN

Manufacturer: Renesas Electronics Corporation

Categories: Clock Generators, PLLs, Frequency Synthesizers

Quality Control: Learn More

Renesas Electronics Corporation 843S304BKI-100LFT is a high-performance clock synthesizer designed for precision timing applications. This component features a single circuit with a maximum output frequency of 105MHz, accepting a crystal input. It provides robust clock generation capabilities with LVPECL outputs and supports differential input/output signaling. The internal PLL and a 1:4 input-to-output ratio enable flexible frequency translation. This surface-mount device is housed in a 32-VFQFPN (5x5) exposed pad package, suitable for high-density board designs. Operating within a temperature range of -40°C to 85°C and requiring a supply voltage of 3.135V to 3.465V, the 843S304BKI-100LFT is commonly utilized in networking equipment, telecommunications infrastructure, and high-speed computing systems. The device is supplied in Tape & Reel packaging.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
PackagingTape & Reel (TR)
Package / Case32-VFQFN Exposed Pad
Mounting TypeSurface Mount
OutputLVPECL
Frequency - Max105MHz
TypeClock Synthesizer
InputCrystal
Operating Temperature-40°C ~ 85°C
Voltage - Supply3.135V ~ 3.465V
Ratio - Input:Output1:4
Differential - Input:OutputYes/Yes
Supplier Device Package32-VFQFPN (5x5)
PLLYes
Divider/MultiplierYes/No
Number of Circuits1
ProgrammableNot Verified
