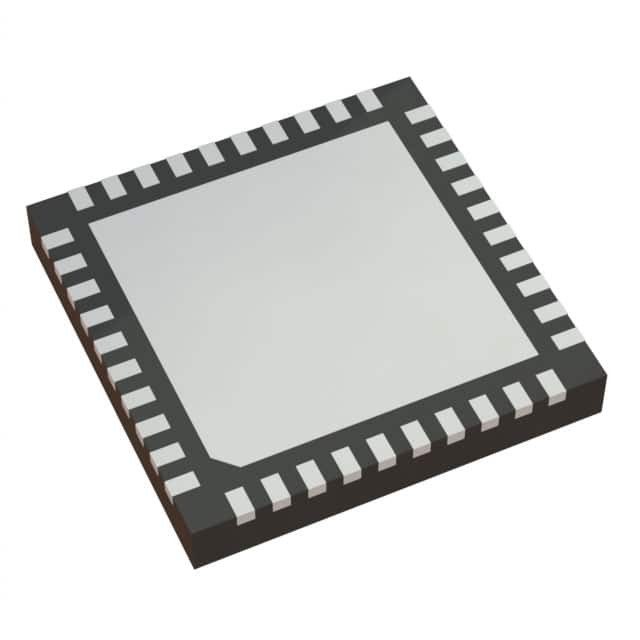

843N571AKILF
IC CLK SYNTHESIZER NG 40VFQFPNManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Renesas Electronics Corporation's 843N571AKILF is a high-performance FemtoClock® NG series clock synthesizer. This single-circuit device offers a maximum output frequency of 156.25MHz, supporting a variety of input types including LVCMOS, LVTTL, and Crystal. Its output capabilities encompass LVCMOS, LVPECL, and LVTTL. The 843N571AKILF features a PLL with bypass functionality and an input-to-output ratio configurable from 2:9. Designed for surface mounting, it is housed in a 40-VFQFN exposed pad package. Operating across a temperature range of -40°C to 85°C, this component is suitable for applications in networking, telecommunications, and computing.
Additional Information
Series: FemtoClock® NGRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 40-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | LVCMOS, LVPECL, LVTTL |
| Frequency - Max | 156.25MHz |
| Input | LVCMOS, LVTTL, Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Ratio - Input:Output | 2:9 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 40-VFQFPN (6x6) |
| PLL | Yes with Bypass |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
