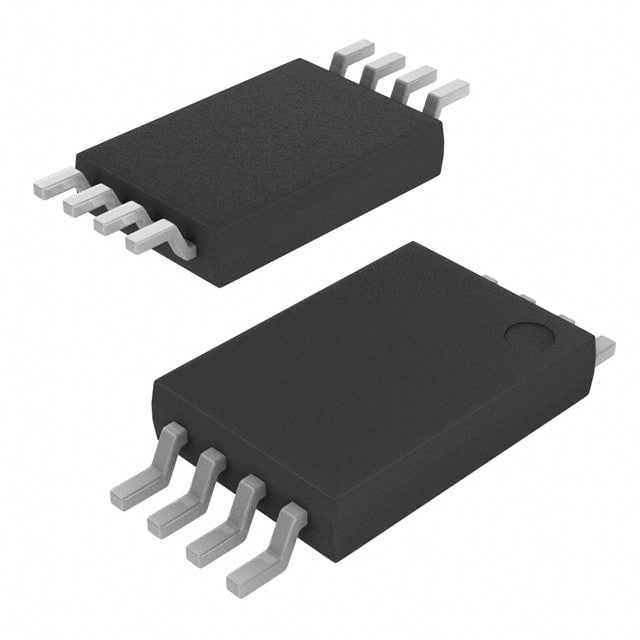

843051AGLF
IC CLK/FREQ SYNTH 8TSSOPManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Renesas Electronics Corporation's 843051AGLF is a FemtoClock® series clock/frequency synthesizer and generator. This IC operates with a crystal input and LVPECL output, offering a maximum frequency of 161.13MHz. Featuring a 1:1 input-to-output ratio and a PLL, it provides a single synthesized clock output. The device supports differential output. It is supplied in an 8-TSSOP package with a 0.173" (4.40mm) width, suitable for surface mounting and available in bulk packaging. Operating within a temperature range of 0°C to 70°C, it requires a supply voltage between 3.135V and 3.465V. This component is utilized in applications requiring precise clock generation and frequency synthesis, such as communication infrastructure and data processing systems.
Additional Information
Series: FemtoClock®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Output | LVPECL |
| Frequency - Max | 161.13MHz |
| Type | Clock/Frequency Synthesizer, Clock Generator |
| Input | Crystal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 8-TSSOP |
| PLL | Yes |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
