5V49EE904NLGI-065
IC CLOCK GENERATOR 32VFQFPNManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More

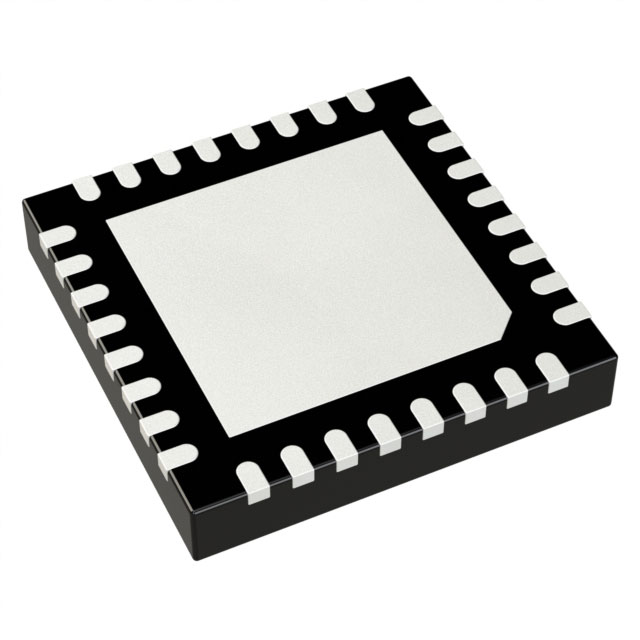

The Renesas Electronics Corporation 5V49EE904NLGI-065 is a VersaClock® III series clock generator. This device, packaged in a 32-VFQFPN (5x5) with an exposed pad, generates frequencies up to 200MHz. It features a single circuit with PLL capabilities, including a bypass function. Input options include LVCMOS, LVTTL, and crystal sources, while outputs are available in LVCMOS and LVTTL formats. The 5V49EE904NLGI-065 supports ratio selection for input-to-output frequency, with a configurable ratio of 2:7. Designed for surface mount applications, it operates within a temperature range of -40°C to 85°C and requires a supply voltage between 3.135V and 3.465V. This component is utilized in various industrial applications, including consumer electronics and communications infrastructure.
Additional Information
Series: VersaClock® IIIRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | LVCMOS, LVTTL |
| Frequency - Max | 200MHz |
| Type | Clock Generator |
| Input | LVCMOS, LVTTL, Crystal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 3.135V ~ 3.465V |
| Ratio - Input:Output | 2:7 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 32-VFQFPN (5x5) |
| PLL | Yes with Bypass |
| Divider/Multiplier | Yes/Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
