5V49EE704-170NDGI8
IC CLOCK GENERATOR 28VFQFPNManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
The Renesas Electronics Corporation 5V49EE704-170NDGI8 is a versatile clock generator and multiplexer IC. Operating within a 3.135V to 3.465V supply range, this component delivers up to 200MHz with an input-to-output ratio of 2:6. It supports LVCMOS and LVTTL input signals, as well as crystal input, and provides LVCMOS and LVTTL outputs. Featuring a PLL with bypass functionality, the device includes integrated divider and multiplier capabilities. The 5V49EE704-170NDGI8 is housed in a 28-VFQFPN (4x4) exposed pad package suitable for surface mounting. This component is commonly utilized in networking, telecommunications, and computing applications where precise clock distribution is critical. It is supplied on a Tape & Reel (TR) for high-volume manufacturing processes.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

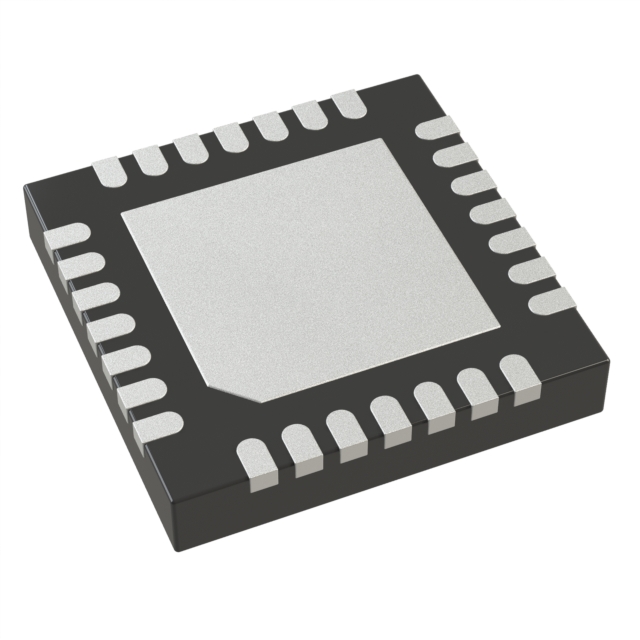

| Package / Case | 28-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | LVCMOS, LVTTL |
| Frequency - Max | 200MHz |
| Type | Clock Generator, Multiplexer |
| Input | LVCMOS, LVTTL, Crystal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 3.135V ~ 3.465V |
| Ratio - Input:Output | 2:6 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 28-VFQFPN (4x4) |
| PLL | Yes with Bypass |
| Divider/Multiplier | Yes/Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
