5V49EE701NDGI

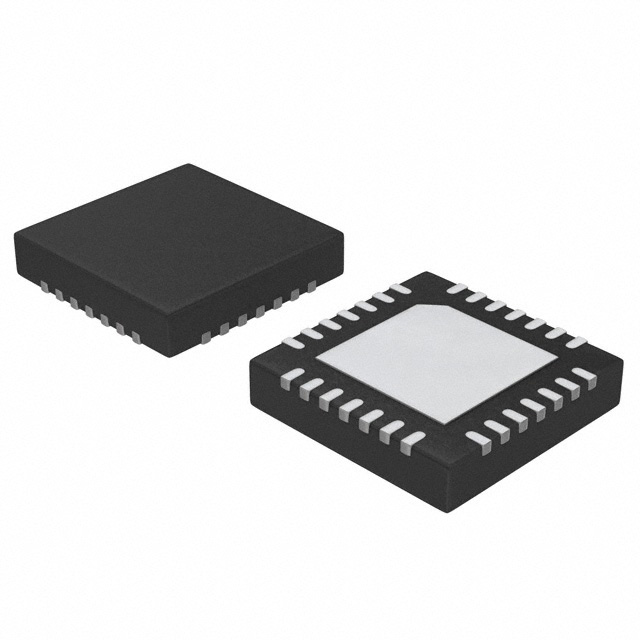

IC CLOCK GENERATOR 28VFQFPNManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Renesas Electronics Corporation 5V49EE701NDGI is a VersaClock® III series clock generator and multiplexer IC. This component is designed for high-performance applications requiring flexible clock distribution. It offers a maximum frequency of 500MHz and supports a wide range of input types including LVCMOS, LVTTL, and Crystal. The output options are equally versatile, featuring HCSL, LVCMOS, LVDS, LVPECL, and LVTTL.
This device integrates a Phase-Locked Loop (PLL) with bypass functionality, enabling precise frequency synthesis and management. The 5V49EE701NDGI provides a configurable input-to-output ratio ranging from 2 to 6, facilitating complex clock tree generation. Its 28-VFQFPN (6x6) package with an exposed pad ensures efficient thermal dissipation suitable for surface mount applications. Operating within a temperature range of -40°C to 85°C, this clock generator is well-suited for use in telecommunications, industrial automation, and consumer electronics markets.
Additional Information
Series: VersaClock® IIIRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | HCSL, LVCMOS, LVDS, LVPECL, LVTTL |
| Frequency - Max | 500MHz |
| Type | Clock Generator, Multiplexer |
| Input | LVCMOS, LVTTL, Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Ratio - Input:Output | 2:6 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 28-VFQFPN (6x6) |
| PLL | Yes with Bypass |
| Divider/Multiplier | Yes/Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
