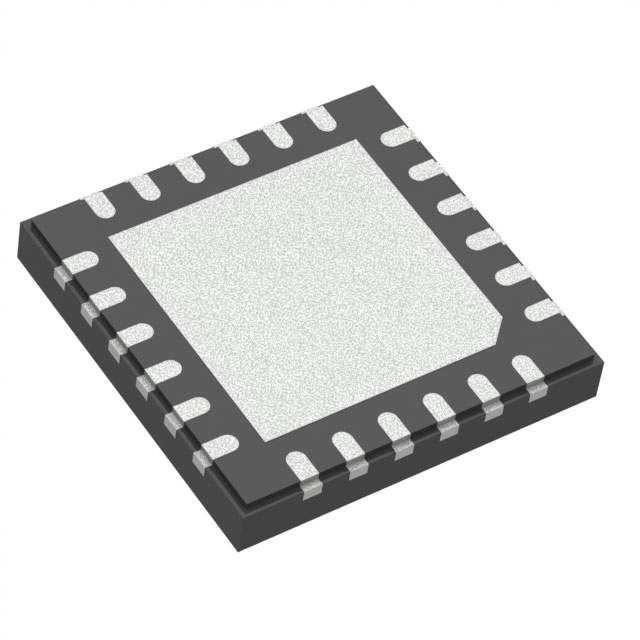

5P49V60A000NLG28
IC CLOCK GENERATOR 24VFQFPNManufacturer: Renesas Electronics Corporation
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Renesas Electronics Corporation's 5P49V60A000NLG28 is a versatile clock generator IC designed for high-performance applications. This component supports a maximum frequency of 350MHz and features a 2:5 input-to-output ratio, with an option for PLL bypass. It accepts clock inputs in HCSL, LVCMOS, LVDS, LVPECL, and crystal formats, and provides HCSL, LVCMOS, LVDS, and LVPECL outputs. The device is packaged in a 24-VFQFPN with an exposed pad and is suitable for surface mounting with wettable flanks. Operating across a temperature range of -40°C to 105°C, it accommodates multiple supply voltage ranges, including 1.71V to 1.89V, 2.375V to 2.625V, and 3.135V to 3.465V. This clock generator is commonly utilized in networking infrastructure, data centers, and industrial control systems. The 5P49V60A000NLG28 is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-VFQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Output | HCSL, LVCMOS, LVDS, LVPECL |
| Frequency - Max | 350MHz |
| Type | Clock Generator |
| Input | HCSL, LVCMOS, LVDS, LVPECL, Crystal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Voltage - Supply | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V |
| Ratio - Input:Output | 2:5 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 24-VFQFPN (4x4) |
| PLL | Yes with Bypass |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
